Product CatalogPart Number
APTF1616SURKCGKSYKC
Manufacturer
KingbrightDescription
LED GREEN/RED/YELLOW CLEAR 4SMD
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
46,859 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
APTF1616SURKCGKSYKC
APTF1616SURKCGKSYKC
lmages are for reference only.Payment Methods
Delivery Services
Green, Red, Yellow 570nm Green, 630nm Red, 590nm Yellow LED Indication - Discrete 2.1V Green, 1.95V Red, 2V Yellow 4-SMD, No Lead
Quick Inquiry
APTF1616SURKCGKSYKC
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | HELI Colour |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red, Yellow |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 55mcd Green, 250mcd Red, 120mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red, 2V Yellow |
| Current - Test | 20mA Green, 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 630nm Red, 590nm Yellow |
| Wavelength - Peak | 574nm Green, 650nm Red, 590nm Yellow |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.90mm |
| Base Product Number | APTF1616 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

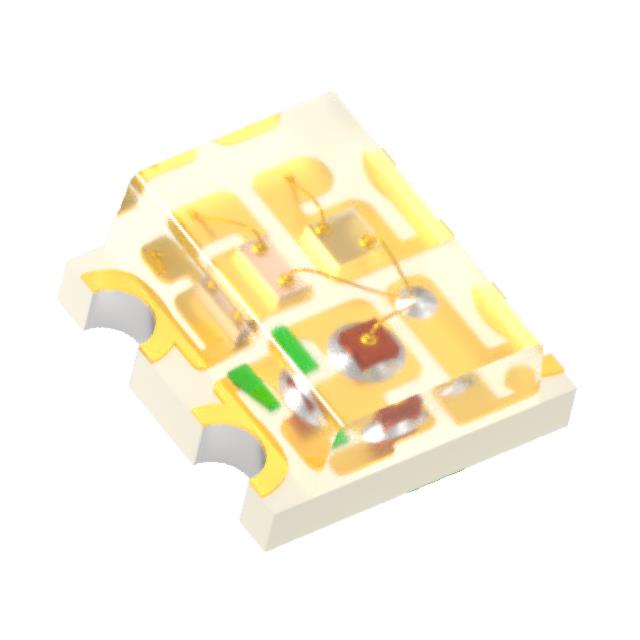

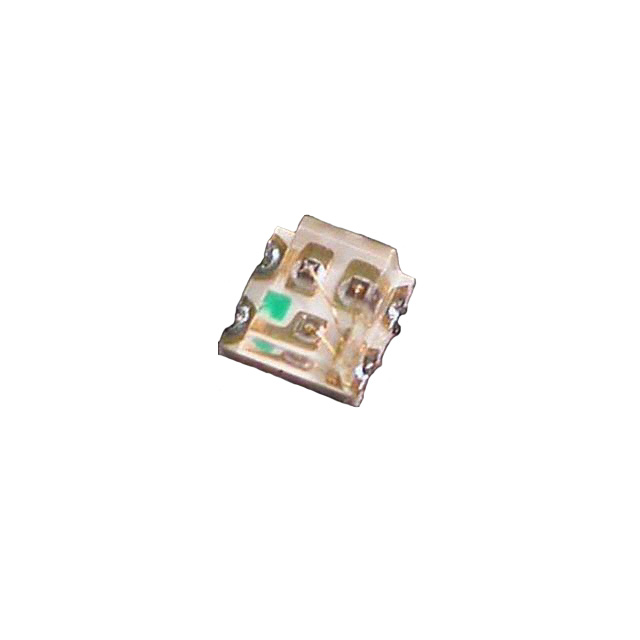

| Part Number | APTF1616SEEVGAPBAC | APTF1616SEEZGKQBKC | APTF1616SEEZGQBDC | APTF1616SEJ3ZGGVBDC |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB CLEAR 4SMD | LED RGB CLEAR 4SMD | LED RGB CLEAR 4SMD | LED RGB CLEAR 4SMD |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
