APXH6R3ARA101MF60G
lmages are for reference only.Payment Methods
Delivery Services
100 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 40mOhm 1000 Hrs @ 125°C
APXH6R3ARA101MF60G
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chemi-Con |
| Series | NPCAP™-PXH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

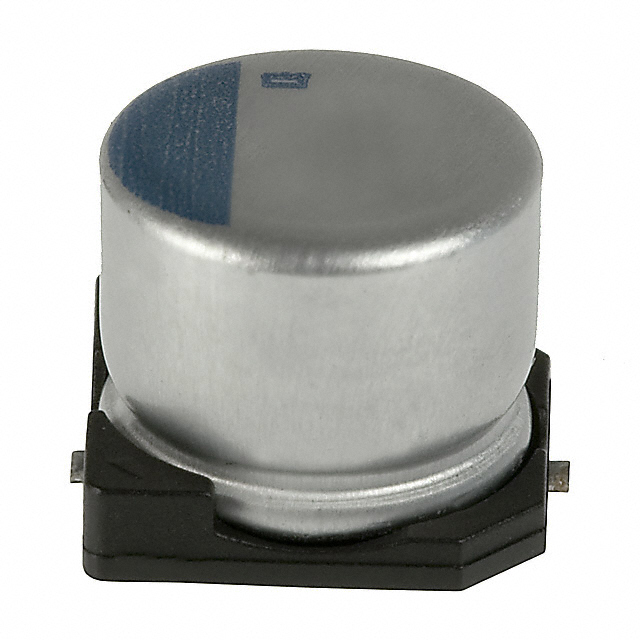

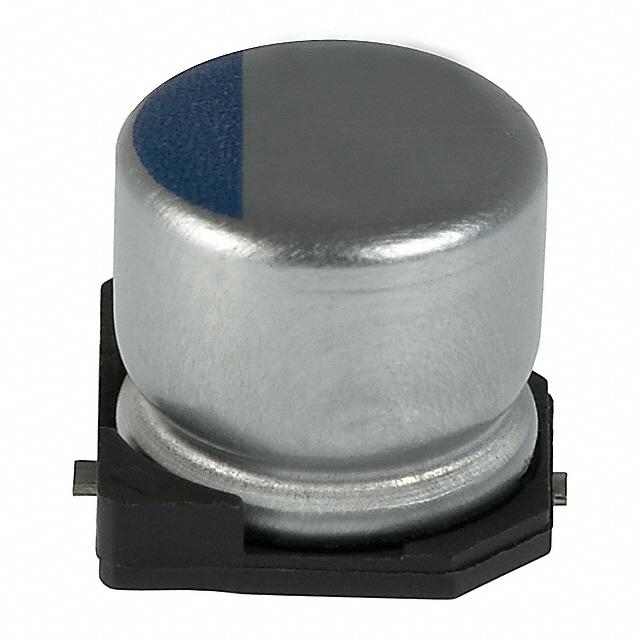

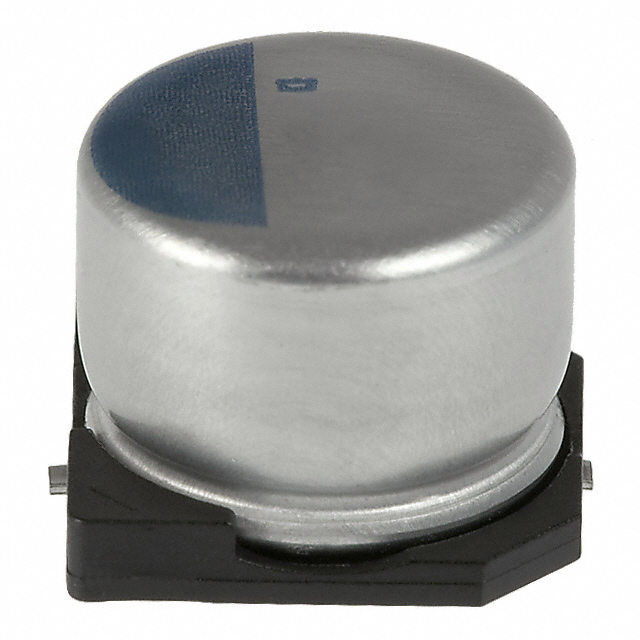

| Part Number | APXH6R3ARA101MF61G | APXH6R3ARA151MH70G | APXH6R3ARA221MH70G | APXH6R3ARA471MJ80G |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 100UF 20% 6.3V SMD | CAP ALUM POLY 150UF 20% 6.3V SMD | CAP ALUM POLY 220UF 20% 6.3V SMD | CAP ALUM POLY 470UF 20% 6.3V SMD |
| Series | NPCAP™-PXH | NPCAP™-PXH | NPCAP™-PXH | NPCAP™-PXH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
