AS1364-BTDT-30
lmages are for reference only.AS1364-BTDT-30
IC REG LINEAR 3V 1A 8TDFN
Datasheet8-WDFN Exposed Pad
23,024 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A 8-TDFN (3x3)
AS1364-BTDT-30
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | ams-OSRAM USA INC. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 150 µA |
| PSRR | 78dB ~ 46dB (1kHz ~ 100kHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (3x3) |
| Base Product Number | AS1364 |
| Current - Supply (Max) | 200 µA |
| Product Attribute |  |
 |
 |
|
| Part Number | AS1364-BTDT-30-1K | AS1364-BTDT-33 | AS1364-BTDT-15 | AS1364-BTDT-15-1K |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | RoHS Compliant | |||

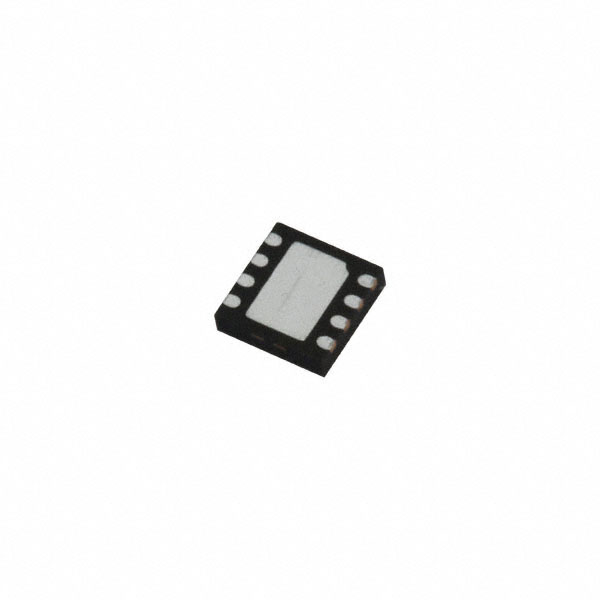

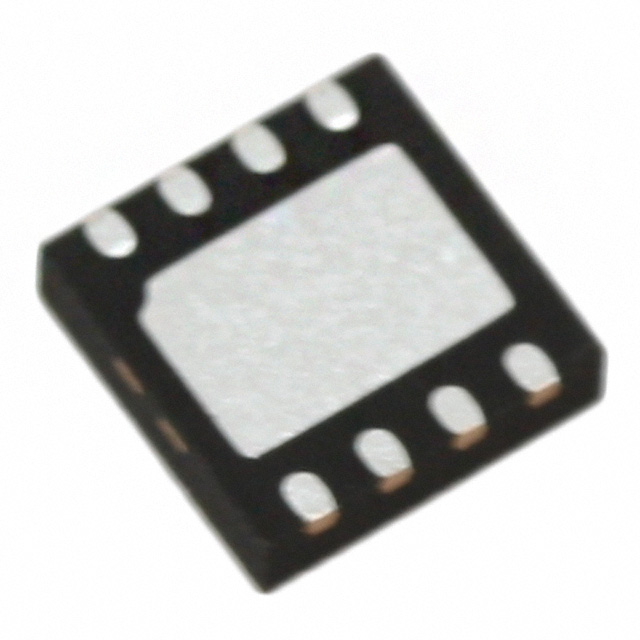

| Description | IC REG LINEAR 3V 1A 8TDFN | IC REG LINEAR 3.3V 1A 8TDFN | IC REG LINEAR 1.5V 1A 8TDFN | IC REG LINEAR 1.5V 1A 8TDFN |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
