AS5043-ASSM
lmages are for reference only.AS5043-ASSM
SENSOR ANGLE 360DEG
Datasheet16-SSOP (0.209", 5.30mm Width)
88,659 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Angle External Magnet, Not Included
AS5043-ASSM
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | ams-OSRAM USA INC. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| For Measuring | Angle |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±0.5° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Termination Style | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
| Grade | - |
| Qualification | - |
| Base Product Number | AS5043 |
| Product Attribute |  |
 |
 |
 |
| Part Number | AS5046-ASST | AS5046-ASSU | AS5047U-HTSM TSSOP14 LF T&RDP | AS5047U-HTST TSSOP14 LF T&RDP |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||

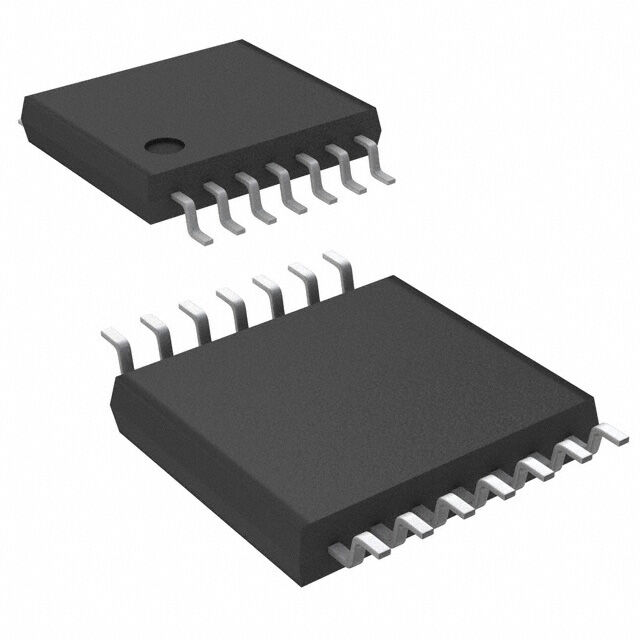

| Description | IC ENCODER PROG 12-BIT 16-SSOP | IC ENCODER PROG 12-BIT 16-SSOP | AS5047U-HTSM TSSOP14 LF T&RDP | AS5047U-HTST TSSOP14 LF T&RDP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
