ASD101BWS-HF

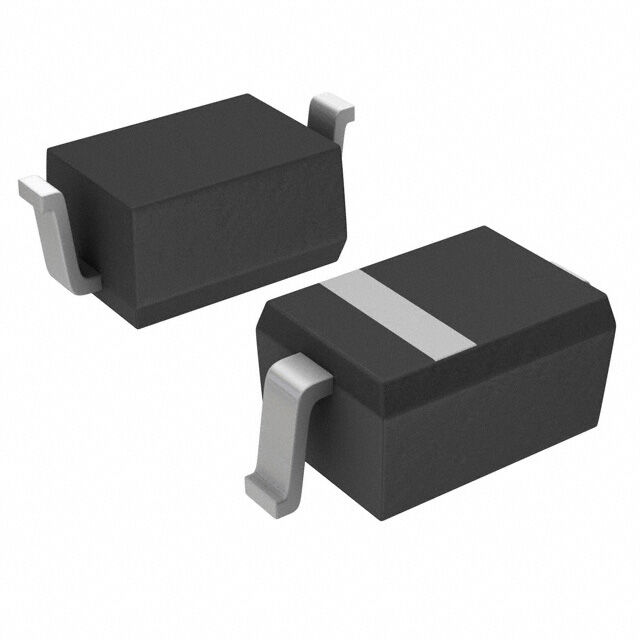

lmages are for reference only.ASD101BWS-HF
DIODE SCHOTTKY 50V 70MA SOD-323
DatasheetSC-76, SOD-323
41,823 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 50 V 70mA Surface Mount SOD-323
ASD101BWS-HF
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Comchip Technology |
| Series | ASD101xWS-HF |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Current - Average Rectified (Io) | 70mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 15 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200 nA @ 40 V |
| Capacitance @ Vr, F | 4pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | ASD101AW-HF | ASD101AWS-HF | ASD101BW-HF | ASD101CW-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DIODE SCHOTTKY 60V 70MA SOD-123 | DIODE SCHOTTKY 60V 70MA SOD-323 | DIODE SCHOTTKY 50V 70MA SOD-123 | DIODE SCHOTTKY 40V 70MA SOD-123 |
| Series | ASD101xW-HF | ASD101xWS-HF | ASD101xW-HF | ASD101xW-HF |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
