ASDX015G24R-DO

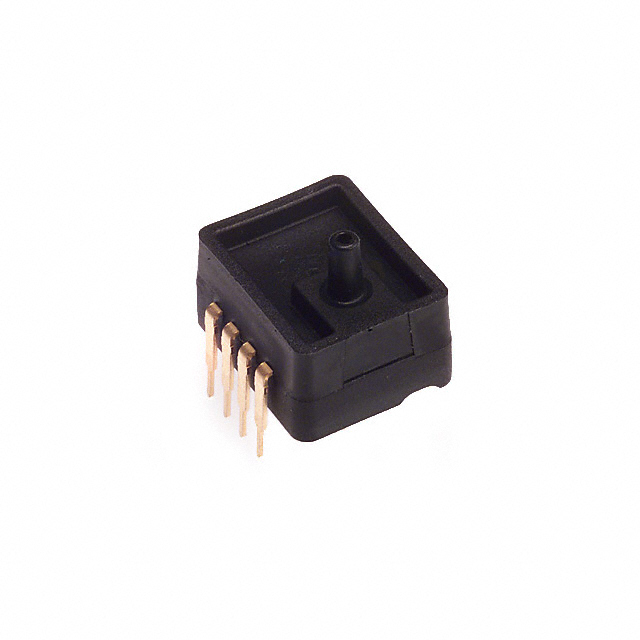

lmages are for reference only.ASDX015G24R-DO
SENSOR 15PSIG 0.09" 12BIT 8DIP
Datasheet8-DIP (0.600", 15.24mm), Top Port
81,357 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.09" (2.29mm) Tube 12 b 8-DIP (0.600", 15.24mm), Top Port
ASDX015G24R-DO
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | ASDX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | I2C |
| Output | 12 b |
| Accuracy | ±2% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09" (2.29mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 30PSI (206.84kPa) |
| Operating Temperature | -20°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.600", 15.24mm), Top Port |
| Supplier Device Package | 8-DIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | ASDX015G24R | ASDX001D44D | ASDX001D44D-DO | ASDX001D44R |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 15PSIG 0.09" 4.5V 8DIP | SENSOR 1PSID 0.09" 4.5V | SENSOR 1PSID 0.09" 12BIT | SENSOR 1PSID 0.09" 4.5V |
| Series | ASDX | ASDX | ASDX | ASDX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
