ASDX100D44R
lmages are for reference only.ASDX100D44R
SENSOR 100PSID 0.09" 4.5V
Datasheet8-DIP Module
90,443 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 100PSI (689.48kPa) Differential Male - 0.09" (2.29mm) Tube, Dual 0.5 V ~ 4.5 V 8-DIP Module
ASDX100D44R
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | ASDX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 100PSI (689.48kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±2% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09" (2.29mm) Tube, Dual |
| Port Style | Barbless |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 150PSI (1034.21kPa) |
| Operating Temperature | -20°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

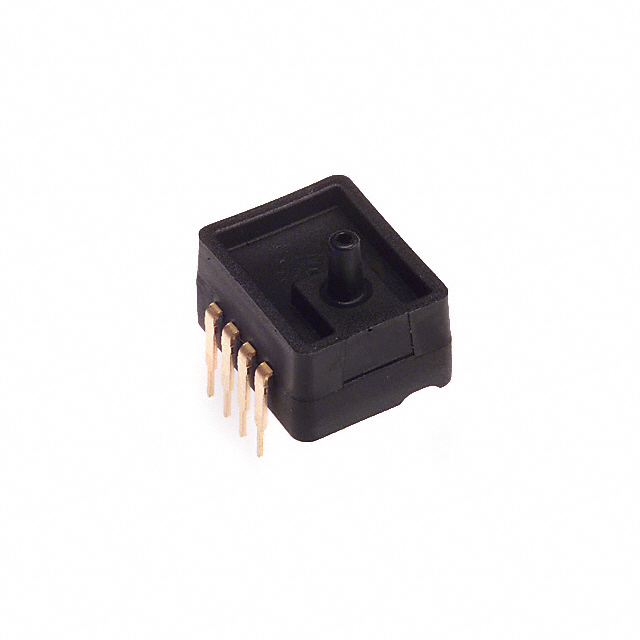

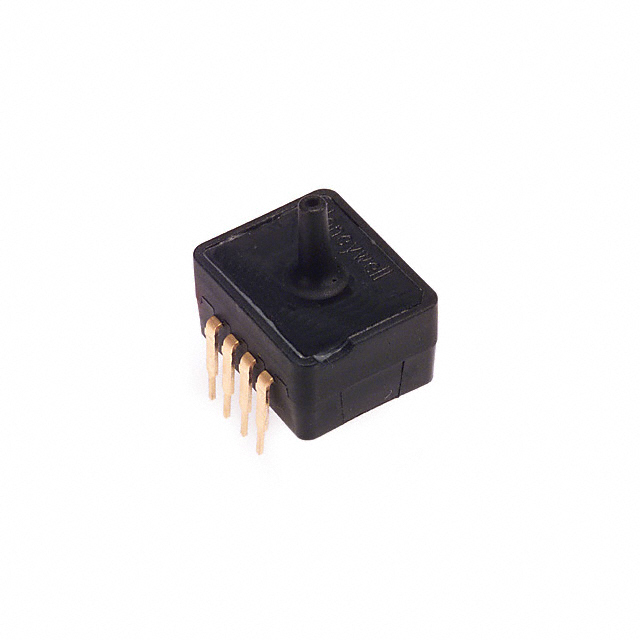

| Part Number | ASDX100A24R | ASDX100A24R-DO | ASDX100A24R-DO | ASDX100G24R |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 100PSIA 0.09" 4.5V 8DIP | SENSOR 100PSIA 0.09" 12BIT 8DIP | SENSOR 100PSIA 0.09" 12BIT 8DIP | SENSOR 100PSIG 0.09" 4.5V 8DIP |
| Series | ASDX | ASDX | ASDX | ASDX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
