ASGTX-D-149.875MHZ-2-T

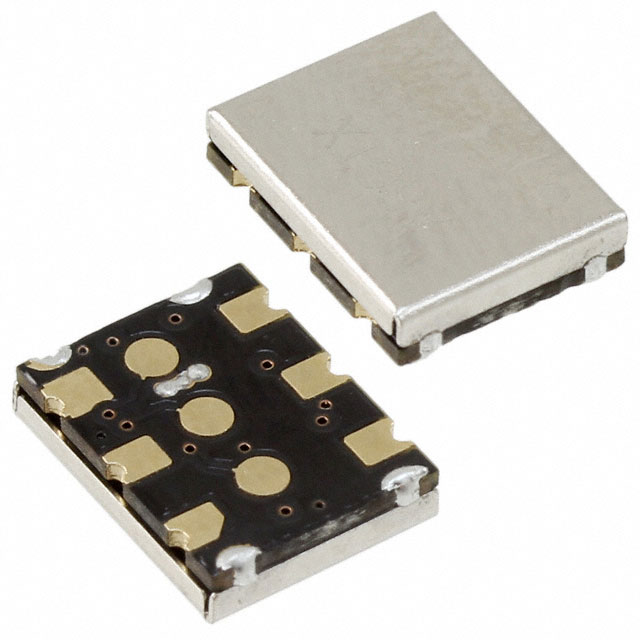

lmages are for reference only.ASGTX-D-149.875MHZ-2-T
XTAL OSC VCTCXO 149.8750MHZ LVDS
Datasheet6-SMD, No Lead
74,139 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
149.875 MHz VCTCXO LVDS Oscillator 3.135V ~ 3.465V 6-SMD, No Lead
ASGTX-D-149.875MHZ-2-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASGTX |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 149.875 MHz |
| Function | - |
| Output | LVDS |
| Voltage - Supply | 3.135V ~ 3.465V |
| Frequency Stability | ±2ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 40mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.354" L x 0.276" W (9.00mm x 7.00mm) |
| Height - Seated (Max) | 0.088" (2.24mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | ASGTX-D-149.875MHZ-1-T | ASGTX-D-1.000GHZ-1 | ASGTX-D-1.000GHZ-1-T | ASGTX-D-1.000GHZ-2 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 149.8750MHZ LVDS | XTAL OSC VCTCXO 1.0000GHZ LVDS | XTAL OSC VCTCXO 1.0000GHZ LVDS | XTAL OSC VCTCXO 1.0000GHZ LVDS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
