ASMAJ7.0A-HF

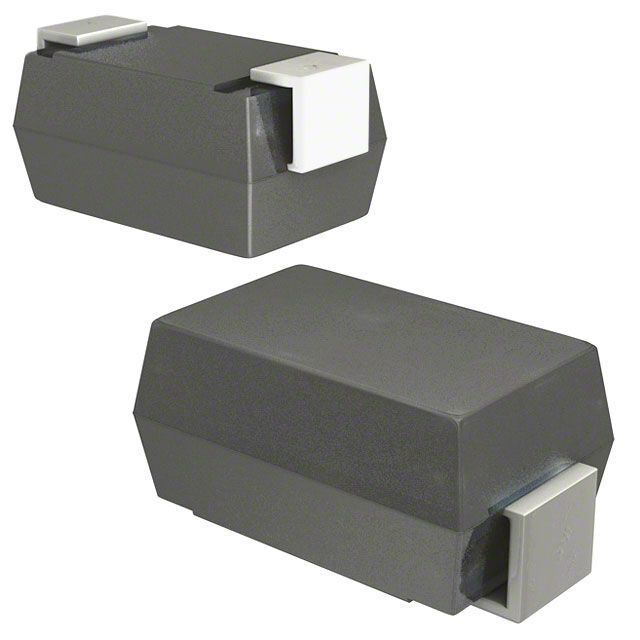

lmages are for reference only.ASMAJ7.0A-HF
DIODE TVS 7V 400W SMA UNI-DIR AU
DatasheetDO-214AC, SMA
59,070 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12V Clamp 33.3A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
ASMAJ7.0A-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 7V |
| Voltage - Breakdown (Min) | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 33.3A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | ASMAJ7.0 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ASMAJ7.0CA-HF | ASMAJ7.5A-HF | ASMAJ7.5CA-HF | ASMAJ70A-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE TVS 7V 400W SMA BI-DIR AUT | DIODE TVS 7.5V 400W SMA UNI-DIR | DIODE TVS 7.5V 400W SMA BI-DIR A | DIODE TVS 70V 400W SMA UNI-DIR A |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
