Product CatalogPart Number
ASR01-12S05
Manufacturer
P-DUKE TechnologyDescription
DC DC CONVERTER -5V 5W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
41,686 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASR01-12S05
ASR01-12S05
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output -5V 1A -7V - -32V Input
Quick Inquiry
ASR01-12S05
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | ASR01 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | -7V |
| Voltage - Input (Max) | -32V |
| Voltage - Output 1 | -5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.30" W x 0.65" H (11.7mm x 7.5mm x 16.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | ASR01 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

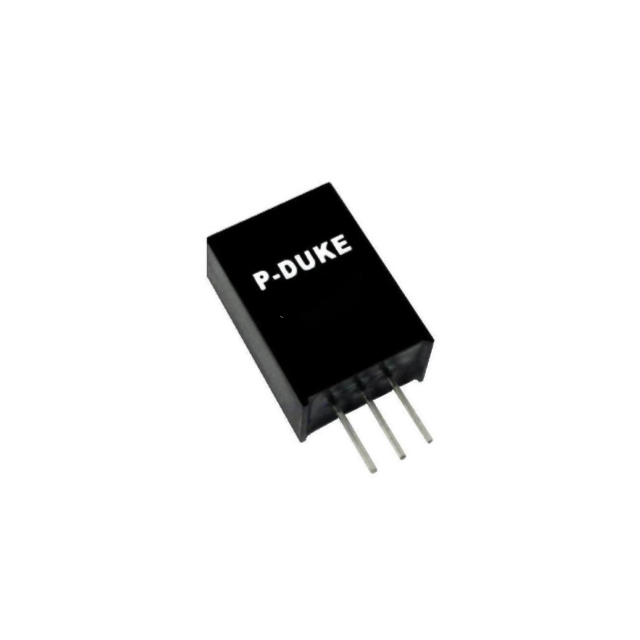

| Part Number | ASR01-24S15 | AM2G-0518DZ | ASA01CC12-M | APC08G08-J |
| Manufacturer | P-DUKE Technology | aimtec | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS non-compliant |
| Description | DC DC CONVERTER -15V 15W | DC DC CONVERTER +/-18V 2W | DC DC CONVERTER +/-15V 5W | DC DC CONVERTER 2.5V 30W |
| Series | P-DUKE Technology | aimtec | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tube | Tube | Tube | Tray |
