ASSR-301C-503E
lmages are for reference only.ASSR-301C-503E
SSR RELAY SPST-NO 50MA 0-250V
Datasheet4-SOP (0.173", 4.40mm)
84,149 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
ASSR-301C-503E
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Broadcom Limited |
| Series | ASSR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.3VDC |
| Voltage - Load | 0 V ~ 250 V |
| Load Current | 50 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 4-SOP (0.173", 4.40mm) |
| Supplier Device Package | 4-SO |
| Approval Agency | CSA, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | ASSR-301C |
| On-State Resistance (Max) | 50 Ohms |
| Product Attribute |  |
 |
 |
 |

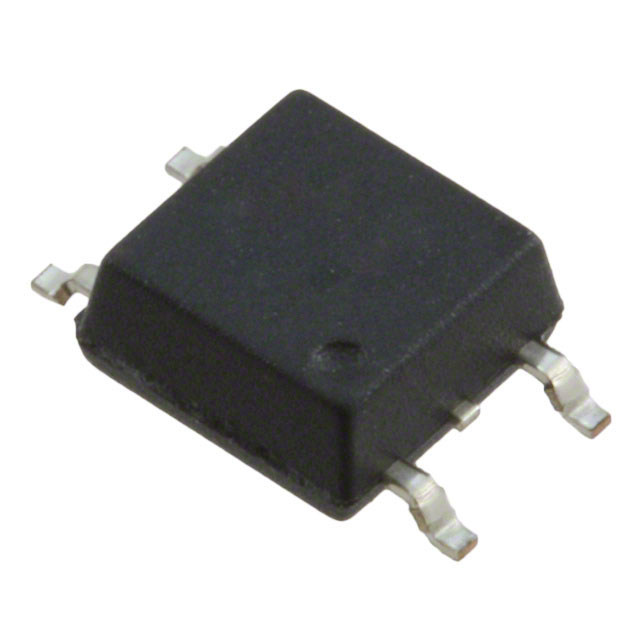

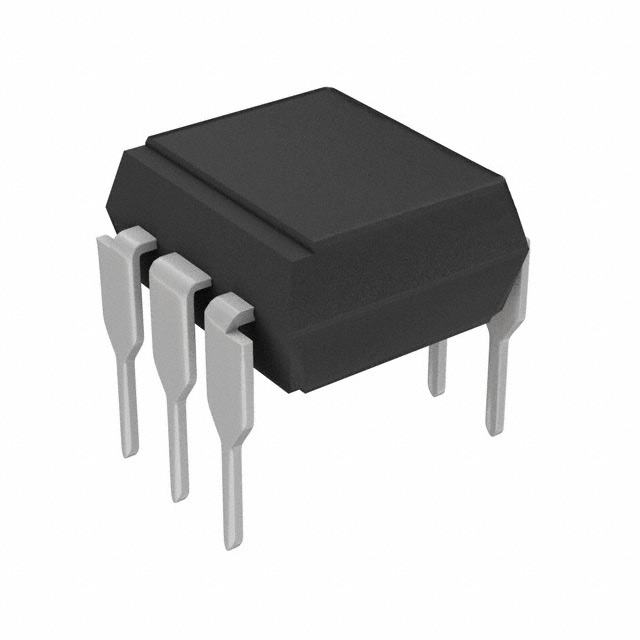

| Part Number | ASSR-301C-003E | ASSR-1218-003E | ASSR-1218-503E | ASSR-1219-001E |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 50MA 0-250V | SSR RELAY SPST-NO 200MA 0-60V | SSR RELAY SPST-NO 200MA 0-60V | SSR RELAY SPST-NO 200MA 0-60V |
| Series | ASSR | ASSR | ASSR | ASSR |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
