Product CatalogPart Number
AST0251104
Manufacturer
METZ CONNECT USA Inc.Description
TERM BLK 11P SIDE ENTRY 5MM PCB
Datasheet
DatasheetPackage
-
In Stock
42,371 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AST0251104
AST0251104
lmages are for reference only.Payment Methods
Delivery Services
11 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Quick Inquiry
AST0251104
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | METZ CONNECT USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Number of Levels | 1 |
| Positions Per Level | 11 |
| Pitch | 0.197" (5.00mm) |
| Mating Orientation | Horizontal with Board |
| Current | 13 A |
| Voltage | 300 V |
| Wire Gauge | 14-28 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Features | Lever Actuated |
| Color | Gray |
| Operating Temperature | -40°C ~ 105°C |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | Steel |
| Screw Material - Plating | - |
| Torque - Screw | - |
| Screw Thread | - |
| Base Product Number | AST025 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AST0251004 | AST0251204 | AST0251604 | AST0251804 |
| Manufacturer | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. | METZ CONNECT USA Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | TERM BLK 10P SIDE ENTRY 5MM PCB | TERM BLK 12P SIDE ENTRY 5MM PCB | TERM BLK 16P SIDE ENTRY 5MM PCB | TERM BLK 18P SIDE ENTRY 5MM PCB |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products

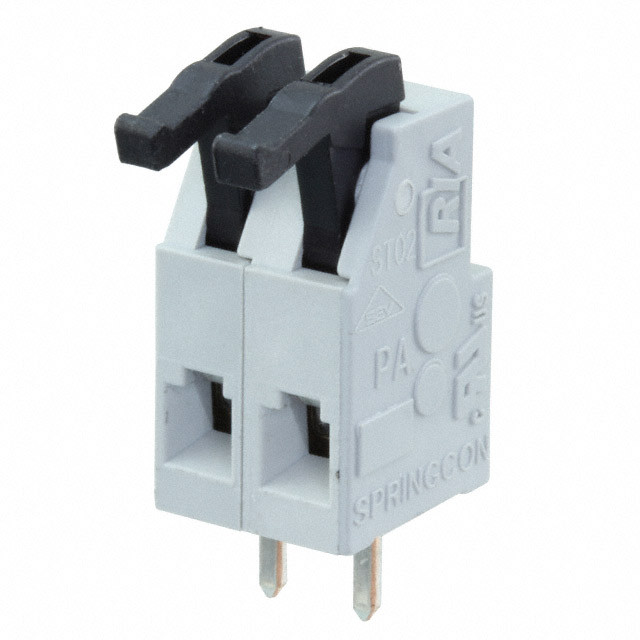

AST0250204
METZ CONNECT USA Inc.

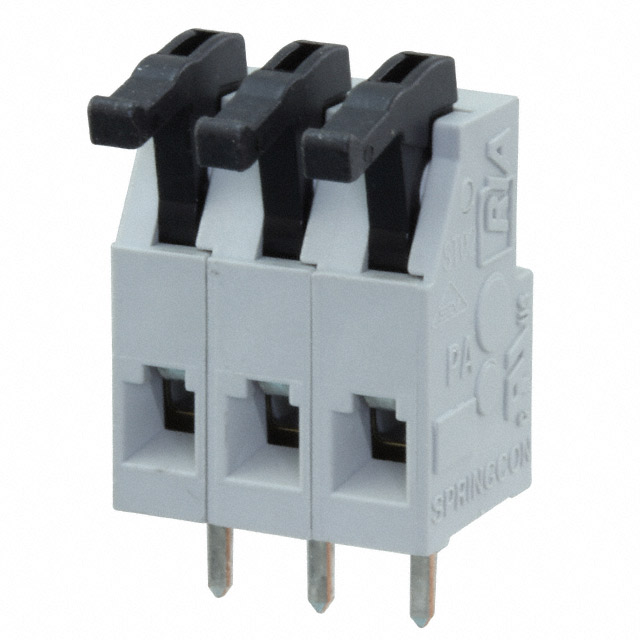

AST0250304
METZ CONNECT USA Inc.
AST0250404
METZ CONNECT USA Inc.
AST0250504
METZ CONNECT USA Inc.

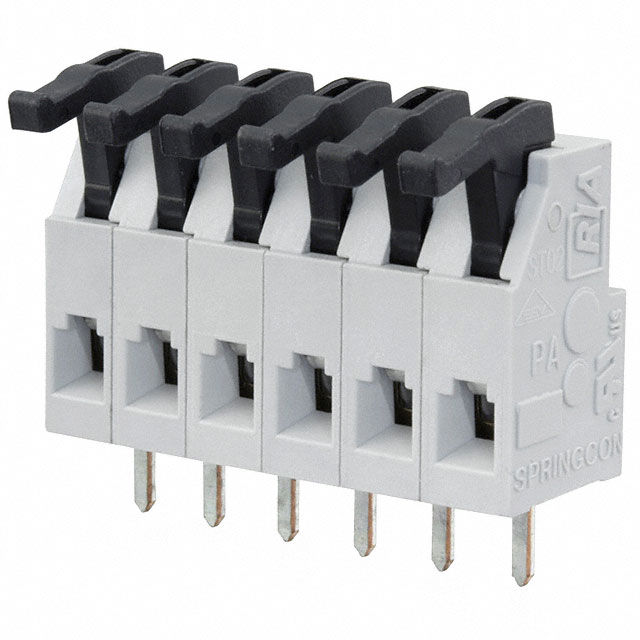

AST0250604
METZ CONNECT USA Inc.

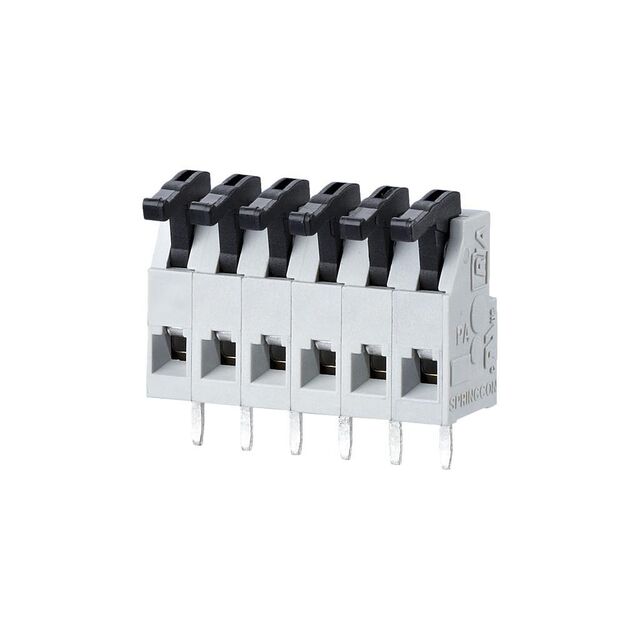

AST0250704
