AST1427M-03TRQ
lmages are for reference only.AST1427M-03TRQ
BUZZER MAGNETIC 3V 0.5X 0.43SMD
Datasheet-
46,233 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buzzers Transducer, Externally Driven Magnetic 3 V 70mA 2.731kHz 89dB @ 3V, 10cm Surface Mount Solder Pads
AST1427M-03TRQ
| Category | Audio Products - Alarms-Buzzers-and Sirens - |
| Manufacturer | Mallory Sonalert Products Inc. |
| Series | AST |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Peak-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 3 ~ 4.5V |
| Frequency | 2.731kHz |
| Technology | Magnetic |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 89dB @ 3V, 10cm |
| Current - Supply | 70mA |
| Port Location | Side |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.551" L x 0.433" W (14.00mm x 11.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

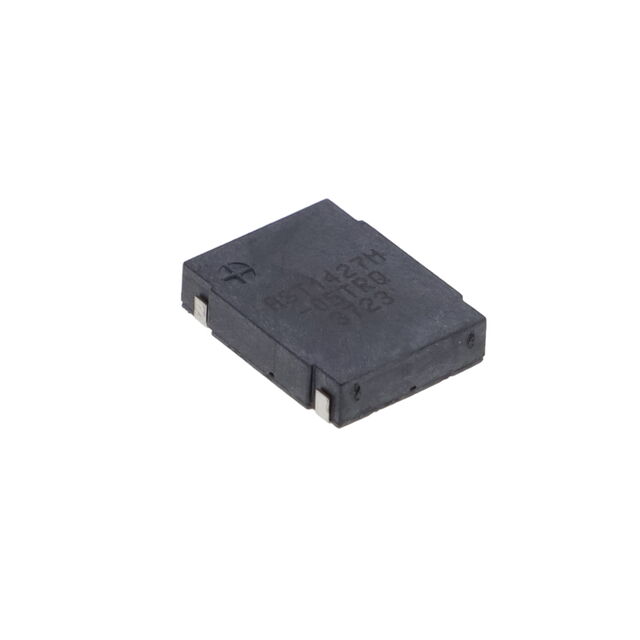

| Part Number | AST1427M-03Q | AST1427M-05Q | AST1427M-05TRQ | AST100Q |
| Manufacturer | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. | Mallory Sonalert Products Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BUZZER MAGNETIC 3V 0.5X 0.43SMD | BUZZER MAGNETIC 5V 0.5X 0.43SMD | BUZZER MAGNETIC 5V 0.5X 0.43SMD | BUZZER PIEZO 5V 17MM SMD |
| Series | AST | AST | AST | AST |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube |
