ASTMHTA-100.000MHZ-AJ-E-T

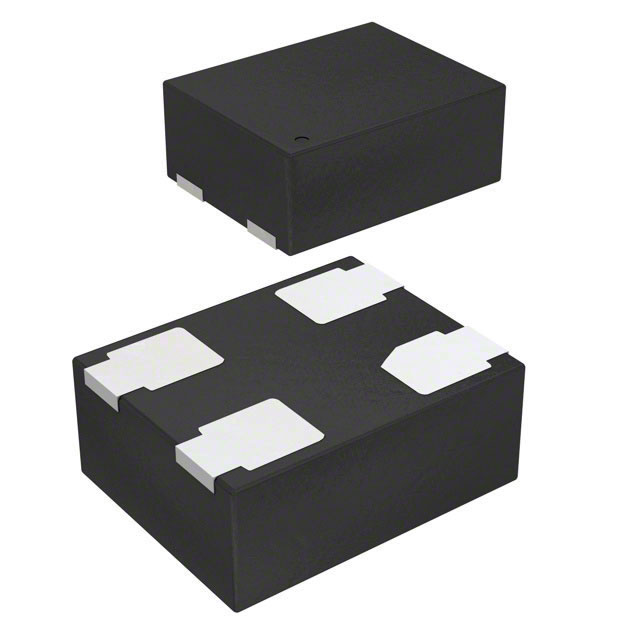

lmages are for reference only.ASTMHTA-100.000MHZ-AJ-E-T
MEMS OSC XO 100.0000MHZ LVCMOS
Datasheet4-SMD, No Lead
24,732 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 MHz XO (Standard) LVCMOS Oscillator 2.25V ~ 3.63V Enable/Disable 4-SMD, No Lead
ASTMHTA-100.000MHZ-AJ-E-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASTMHT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 100 MHz |
| Function | Enable/Disable |
| Output | LVCMOS |
| Voltage - Supply | 2.25V ~ 3.63V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 125°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | - |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | ASTMHTA-100.000MHZ-AJ-E | ASTMHTA-100.000MHZ-AJ-E-T3 | ASTMHTA-100.000MHZ-ZJ-E | ASTMHTA-100.000MHZ-ZJ-E-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 100.0000MHZ LVCMOS | MEMS OSC XO 100.0000MHZ LVCMOS | MEMS OSC XO 100.0000MHZ LVCMOS | MEMS OSC XO 100.0000MHZ LVCMOS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Tape & Reel (TR) | Strip | Tape & Reel (TR)-->Cut Tape (CT) |
