ASTMKH-32.768KHZ-MP-D14-T3
lmages are for reference only.ASTMKH-32.768KHZ-MP-D14-T3
MEMS OSC XO 32.7680KHZ NANODRIVE
Datasheet4-SMD, No Lead
96,799 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
32.768 kHz XO (Standard) NanoDrive™ Oscillator 1.2V ~ 3.63V 4-SMD, No Lead
ASTMKH-32.768KHZ-MP-D14-T3
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASTMKH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 32.768 kHz |
| Function | - |
| Output | NanoDrive™ |
| Voltage - Supply | 1.2V ~ 3.63V |
| Frequency Stability | ±75ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -10°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 1.3µA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|

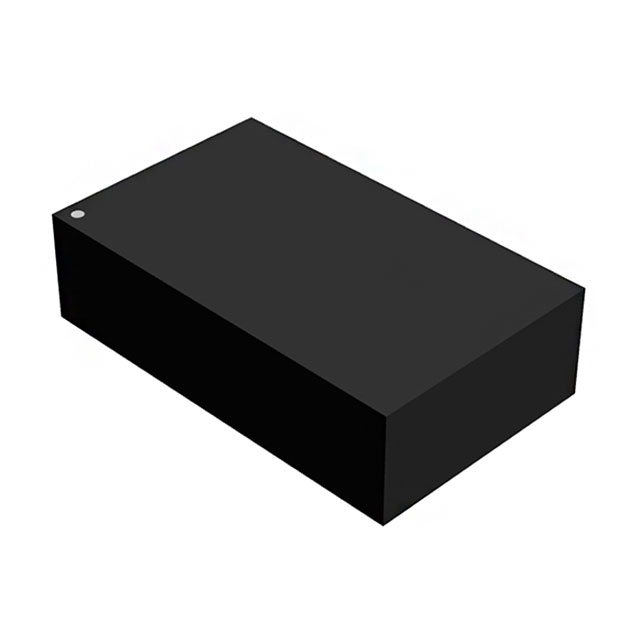

| Part Number | ASTMKH-32.768KHZ-MP-D14-T | ASTMKH-32.768KHZ-MP-D14-T10 | ASTMKH-32.768KHZ-MP-AA3-T | ASTMKH-32.768KHZ-MP-AA3-T10 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 32.7680KHZ NANODRIVE | MEMS OSC XO 32.7680KHZ NANODRIVE | MEMS OSC XO 32.7680KHZ NANODRIVE | MEMS OSC XO 32.7680KHZ NANODRIVE |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
