ASV-16.384MHZ-EJ-T

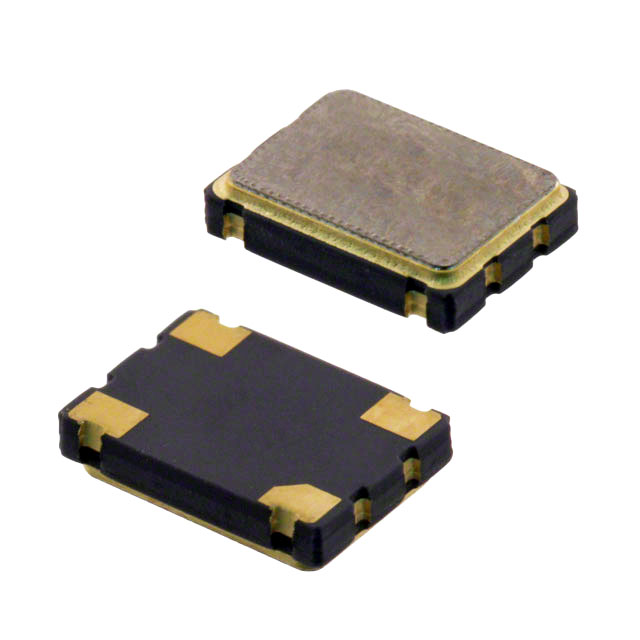

lmages are for reference only.ASV-16.384MHZ-EJ-T
XTAL OSC XO 16.3840MHZ HCMOS SMD
Datasheet4-SMD, No Lead
66,202 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16.384 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
ASV-16.384MHZ-EJ-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 16.384 MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 15mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.200" W (7.00mm x 5.08mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | ASV-16.384MHZ-E-T | ASV-16.384MHZ-EC-T | ASV-16.384MHZ-EC-T | ASV-1.8432MHZ-E-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 16.3840MHZ HCMOS SMD | XTAL OSC XO 16.3840MHZ HCMOS SMD | XTAL OSC XO 16.3840MHZ HCMOS SMD | XTAL OSC XO 1.8432MHZ HCMOS SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
