Product CatalogPart Number
AT-41532-BLKG
Manufacturer
Broadcom LimitedDescription
RF TRANS NPN 12V SC70-3
Datasheet
DatasheetPackage
SC-70, SOT-323
In Stock
76,953 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

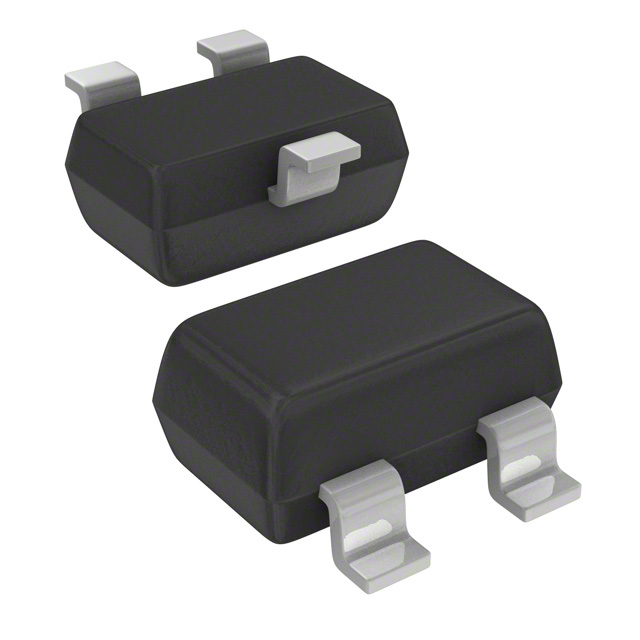

AT-41532-BLKG
AT-41532-BLKG
lmages are for reference only.Payment Methods
Delivery Services
RF Transistor NPN 12V 50mA 225mW Surface Mount SC-70-3
Quick Inquiry
AT-41532-BLKG
Specifications
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | 1dB ~ 1.9dB @ 900MHz ~ 2.4GHz |
| Gain | 9dB ~ 15.5dB |
| Power - Max | 225mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
| Current - Collector (Ic) (Max) | 50mA |
| Operating Temperature | 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 |
| Base Product Number | AT-41532 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AT-41532-TR1 | AT-41532-TR1G | AT-41532-TR2G | AT-41533-BLKG |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | RoHS non-compliant | |||
| Description | RF TRANS NPN 12V SC70-3 | RF TRANS NPN 12V SC70-3 | RF TRANS NPN 12V SC70-3 | RF TRANS NPN 12V SOT23 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products

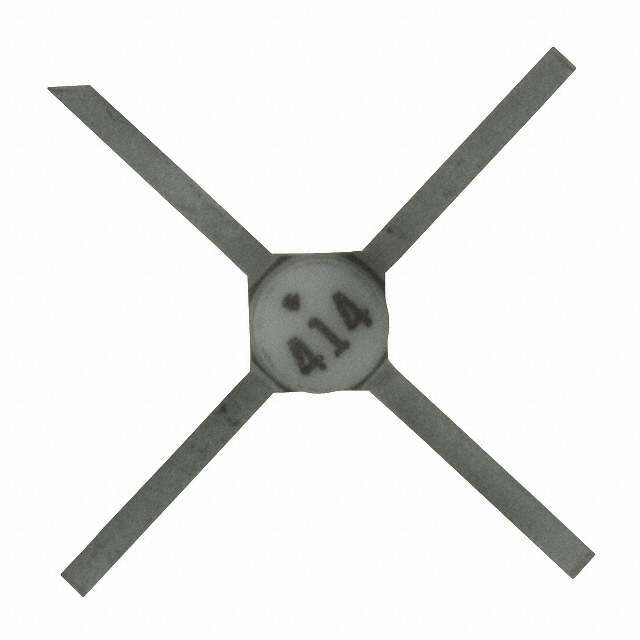

AT-41435G
