AT04-18PC-BM11BK
lmages are for reference only.AT04-18PC-BM11BK
18 POSITION, PCB RECEPTACLE, FLA
Datasheet-
68,314 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole 18 position 0.184" (4.68mm)
AT04-18PC-BM11BK
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol Sine Systems Corp |
| Series | BoardLock™ AT |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | 0.184" (4.68mm) |
| Number of Positions | 18 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.190" (4.83mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.128" (3.25mm) |
| Overall Contact Length | - |
| Insulation Height | 1.010" (25.65mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Board Guide, Mounting Flange |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 13A |
| Voltage Rating | 250V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive, General Purpose, Industrial |
| Base Product Number | AT04-18PC |
| Product Attribute |  |
 |
 |
 |

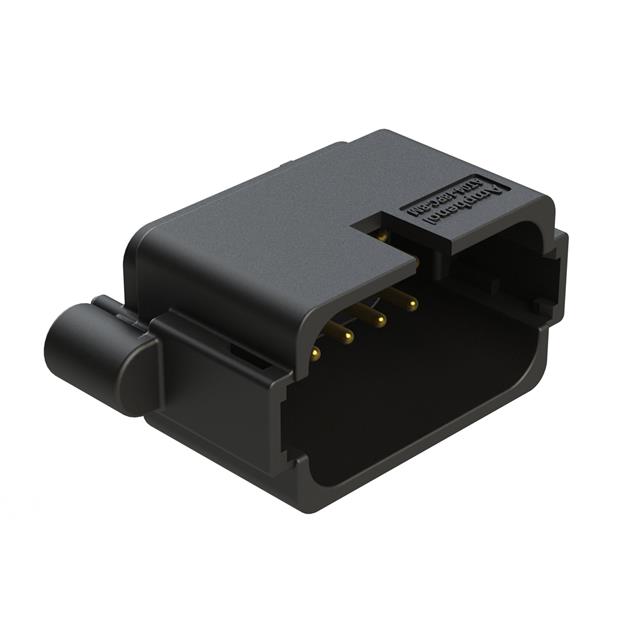

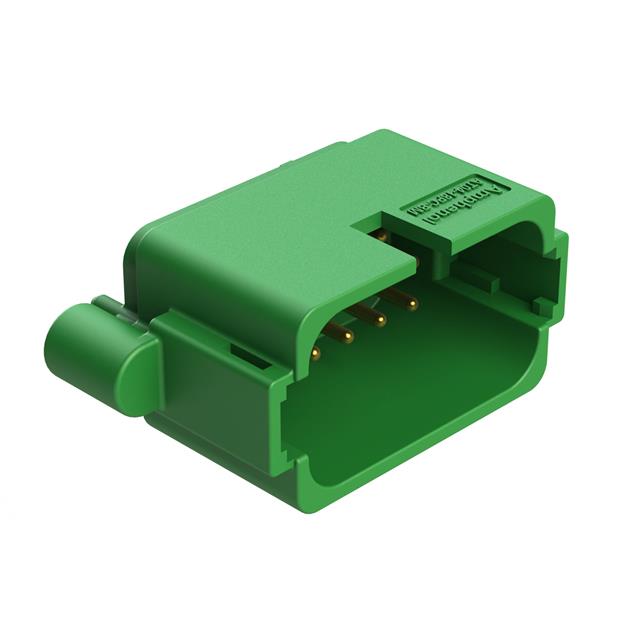

| Part Number | AT04-18PC-BM11 | AT04-18PC-BM12 | AT04-18PC-BM12BK | AT04-18PC-BM13 |
| Manufacturer | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 18 POSITION, PCB RECEPTACLE, FLA | 18 POSITION, PCB RECEPTACLE, FLA | 18 POSITION, PCB RECEPTACLE, FLA | 18 POSITION, PCB RECEPTACLE, FLA |
| Series | BoardLock™ AT | BoardLock™ AT | BoardLock™ AT | BoardLock™ AT |
| Packaging | Tray | Tray | Tray | Tray |
