AT25256AN-SQ27AL
lmages are for reference only.Payment Methods
Delivery Services
EEPROM Memory IC 256Kbit SPI 5 MHz 40 ns 8-SOIC
AT25256AN-SQ27AL
| Category | Integrated Circuits (ICs) - Memory - Memory |
| Manufacturer | Atmel |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 256Kbit |
| Memory Organization | 32K x 8 |
| Memory Interface | SPI |
| Clock Frequency | 5 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AT25256 |
| Access Time | 40 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

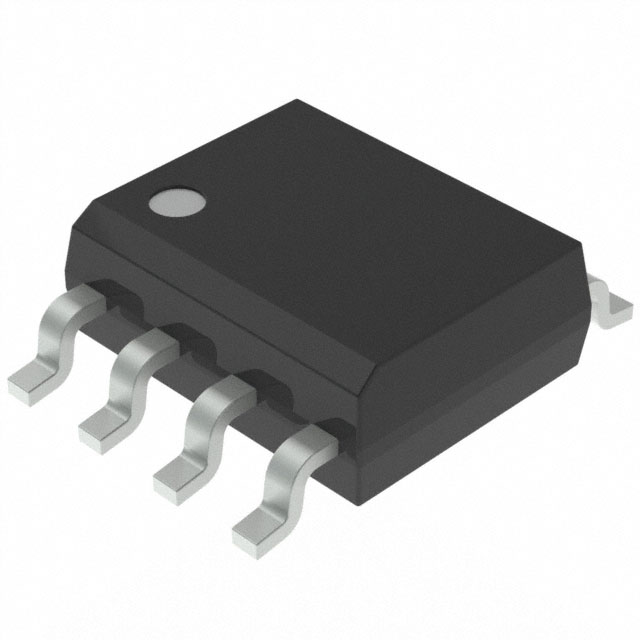

| Part Number | AT25256AN-10SI-1.8 | AT25256AN-10SI-1.8-T | AT25256AN-10SI-2.7 | AT25256AN-10SU-1.8 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC EEPROM 256KBIT SPI 8SOIC | IC EEPROM 256KBIT SPI 8SOIC | IC EEPROM 256KBIT SPI 8SOIC | IC EEPROM 256KBIT SPI 8SOIC |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
