AT90PWM316-16SE
lmages are for reference only.Payment Methods
Delivery Services
AVR - Microcontroller IC 8-Bit 16MHz 16KB (16K x 8) FLASH 32-SOIC
AT90PWM316-16SE
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Atmel |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 11x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-SOIC |
| Package / Case | 32-SOIC (0.295", 7.50mm Width) |
| Base Product Number | AT90PWM316 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

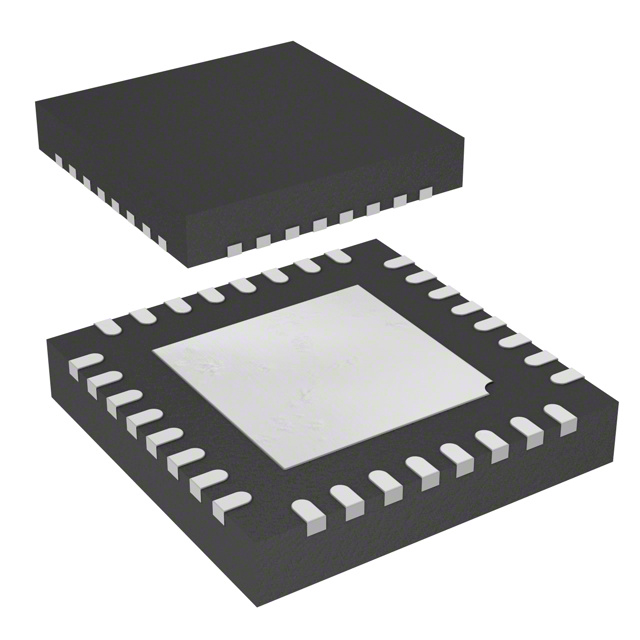

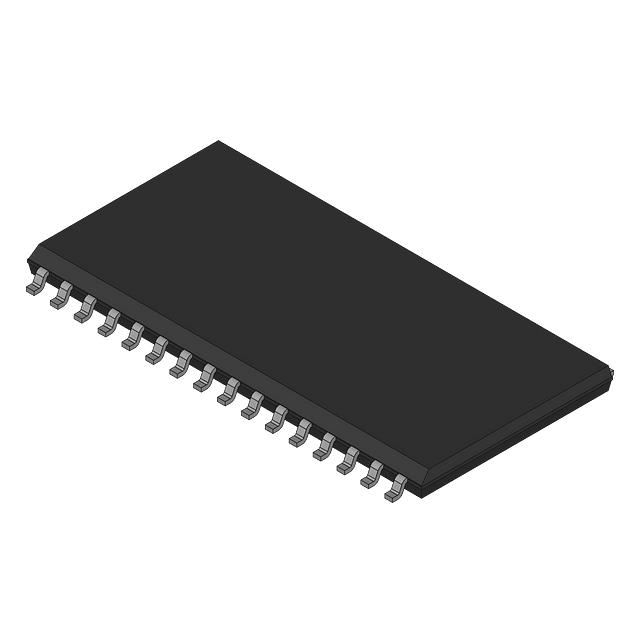

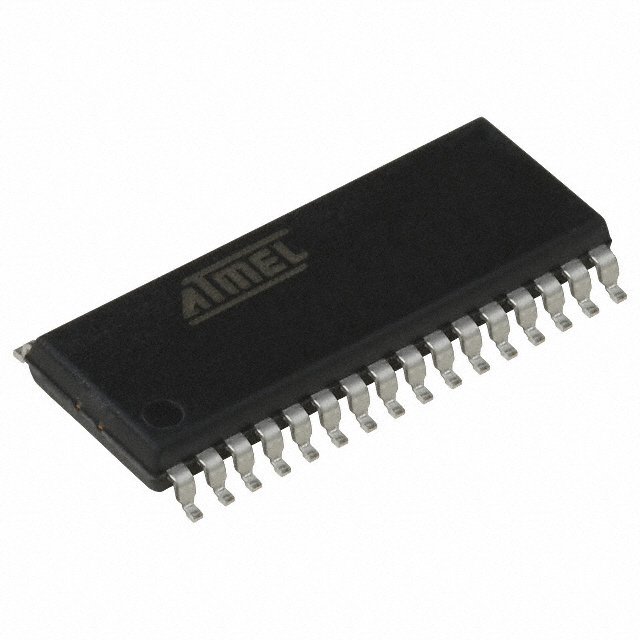

| Part Number | AT90PWM316-16SU | AT90PWM316-16SUR | AT90PWM316-16SUR | AT90PWM316-16MU |
| Manufacturer | Microchip Technology | Atmel | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 8BIT 16KB FLASH 32SOIC | IC MCU 8BIT 16KB FLASH 32SOIC | IC MCU 8BIT 16KB FLASH 32SOIC | IC MCU 8BIT 16KB FLASH 32QFN |
| Series | Microchip Technology | Atmel | Microchip Technology | Microchip Technology |
| Packaging | Tube | Bulk | Tape & Reel (TR) | Tray |
