ATA8520D-GHQW

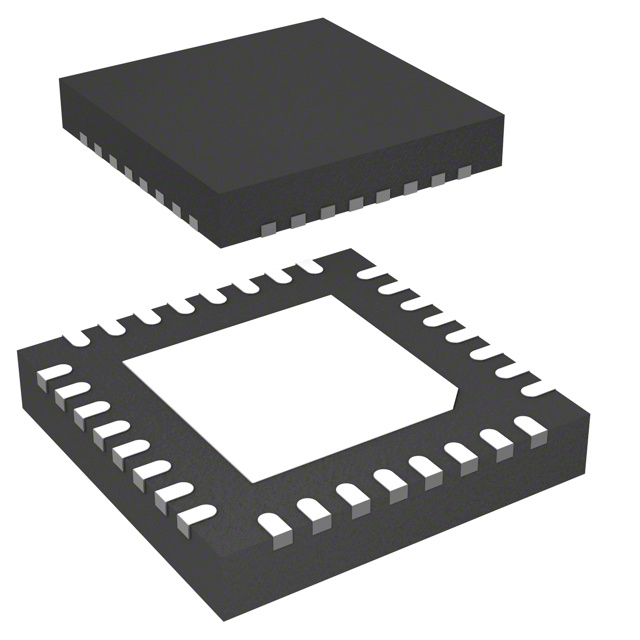

lmages are for reference only.ATA8520D-GHQW
IC RF TXRX+MCU ISM<1GHZ 32VQFN
Datasheet32-VFQFN Exposed Pad
21,606 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU General ISM < 1GHz SIGFOX™ 868MHz 32-VFQFN Exposed Pad
ATA8520D-GHQW
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz |
| Protocol | SIGFOX™ |
| Modulation | DBSPK, GFSK |
| Frequency | 868MHz |
| Data Rate (Max) | 600bps |
| Power - Output | 14dBm |
| Sensitivity | -121.5dBm |
| Memory Size | - |
| Serial Interfaces | SPI |
| GPIO | - |
| Voltage - Supply | 1.9V ~ 3.6V, 2.4V ~ 5.5V |
| Current - Receiving | 10.4mA |
| Current - Transmitting | 31.8mA ~ 32.7mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | ATA8520 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ATA8520D-GHPW | ATA8520-GHPW | ATA8520E-GHPW | ATA8520E-GHQW |
| Manufacturer | Microchip Technology | Atmel | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU ISM<1GHZ 32VQFN | IC RF SGL CHIP 32QFN | IC RF TXRX+MCU ISM<1GHZ 32VQFN | IC RF TXRX+MCU 32VQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
