ATB227M016E077
lmages are for reference only.ATB227M016E077
CAP ALUM 220UF 20% 16V SMD
DatasheetRadial, Can - SMD
79,328 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.206Ohm @ 120Hz 3000 Hrs @ 105°C
ATB227M016E077
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | ATB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 1.206Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 196 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.287" L x 0.268" W (7.30mm x 6.80mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Impedance | 340 mOhms |
| Product Attribute |  |
 |
 |
 |

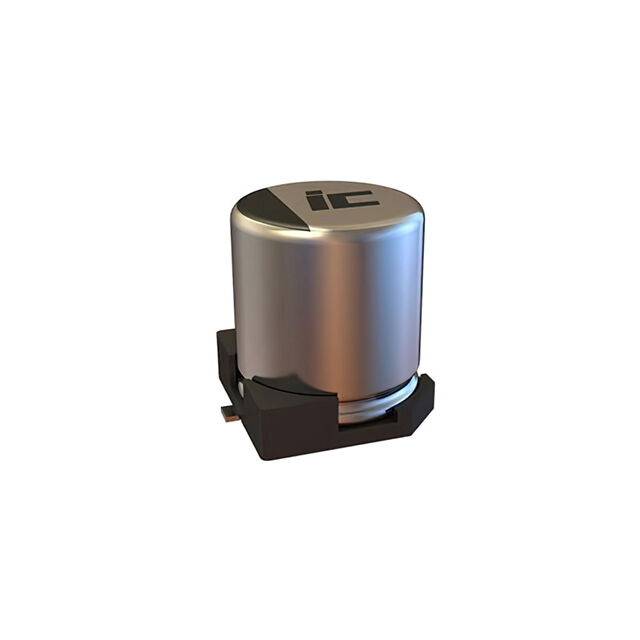

| Part Number | ATB227M025 | ATB227M035 | ATB227M035F102 | ATB227M050 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 220UF 20% 25V SMD | CAP ALUM 220UF 20% 35V SMD | CAP ALUM 220UF 20% 35V SMD | CAP ALUM 220UF 20% 50V SMD |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Cut Tape (CT)-->Bulk | Cut Tape (CT)-->Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
