ATCA-05-182M-H
lmages are for reference only.ATCA-05-182M-H
FIXED IND 1.8MH 1A 680 MOHM TH
DatasheetRadial, Horizontal (Open)
46,504 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

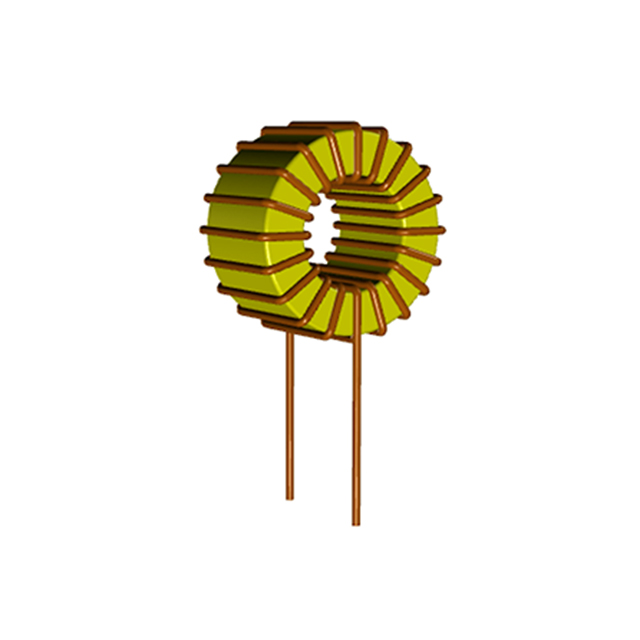

1.8 mH Unshielded Toroidal Inductor 1 A 680mOhm Max Radial, Horizontal (Open)
ATCA-05-182M-H
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | ATCA |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 1.8 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 680mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | ATCA-05-182M-H | ATCA-05-182M-V | ATCA-05-182M-V | ATCA-05-141M-H |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.8MH 1A 680 MOHM TH | FIXED IND 1.8MH 1A 680 MOHM TH | FIXED IND 1.8MH 1A 680 MOHM TH | FIXED IND 140UH 3A 64 MOHM TH |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tray | Tray | Tray | Tray |
