Product CatalogPart Number
ATH030A0X3-SRZ
Manufacturer
OmniOn Power™Description
DC DC CONVERTER 0.8-3.63V 109W
Datasheet
DatasheetPackage
Module
In Stock
62,291 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ATH030A0X3-SRZ
ATH030A0X3-SRZ
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.63V 30A 4.5V - 5.5V Input
Quick Inquiry
ATH030A0X3-SRZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | Austin MegaLynx™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.8 ~ 3.63V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 30A |
| Power (Watts) | 109 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92.2% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Size / Dimension | 1.30" L x 0.53" W x 0.39" H (33.0mm x 13.5mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | ATH030 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

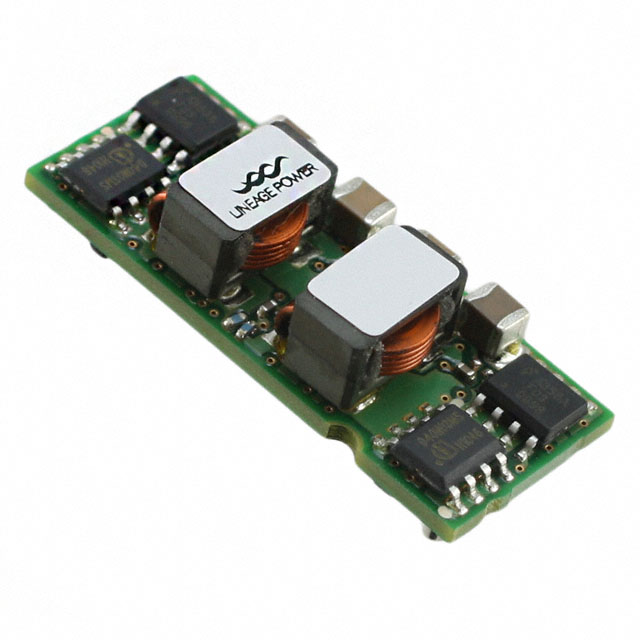

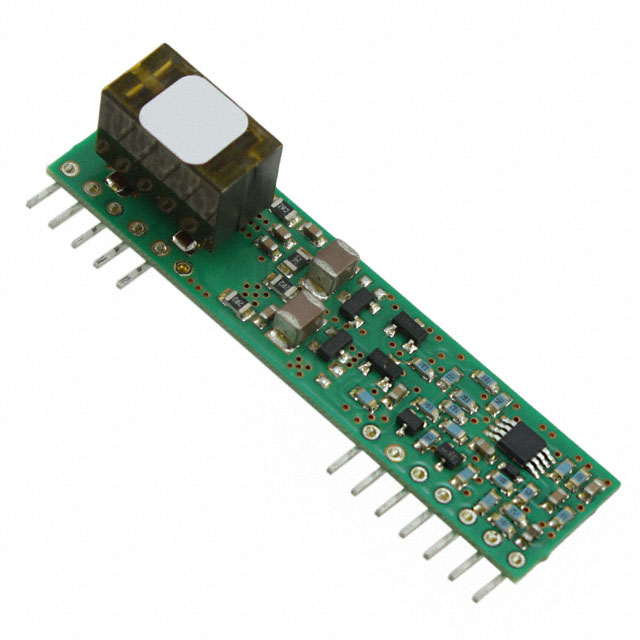

| Part Number | ATH030A0X3 | ATH030A0X3-SRHZ | ATH030A0X3-SRPHZ | ATH006A0X |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS non-compliant | RoHS Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER 0.8-3.6V 108W | DC DC CONVERTER 0.8-3.6V 100W | DC DC CONVERTER 0.8-3.6V 100W | DC DC CONVERTER 0.8-3.6V 21W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
