ATQ8

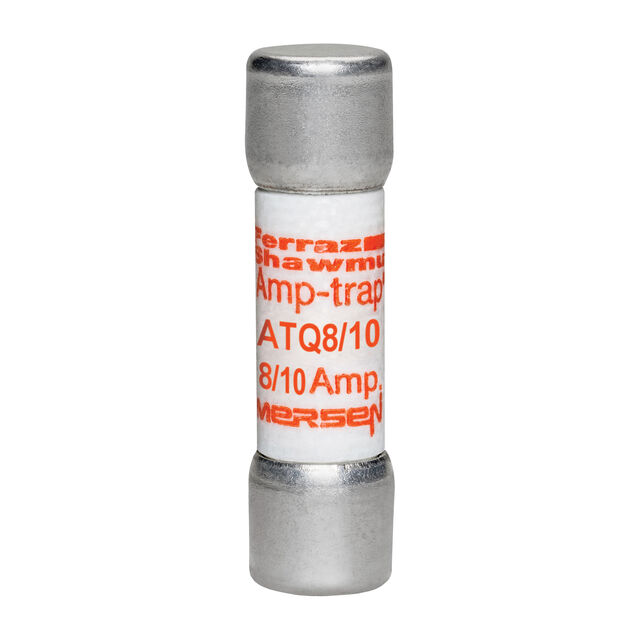

lmages are for reference only.ATQ8
500V 8A TD MIDGET FUSE
DatasheetCylindrical, Blade Terminals
76,221 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8A 500 VAC Fuse Cartridge Requires Holder
ATQ8
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | ATQ |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 8A |
| Voltage Rating - AC | 500 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 10kA |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) |
| Base Product Number | - |
| Voltage Rating - DC | - |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ATQ1 | ATQ1-1/2 | ATQ1-1/4 | ATQ1-6/10 |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | 500V 1A TD MIDGET FUSE | 500V 1-1/2A TD MIDGET FUSE | FUSE,MIDGET,TIME DELAY,PC MOUNT, | 500V 1-6/10A TD MIDGET FUSE |
| Series | ATQ | ATQ | ATQ | ATQ |
| Packaging | Box | Box | Box | Box |
