ATWILC1001A-MU-Y

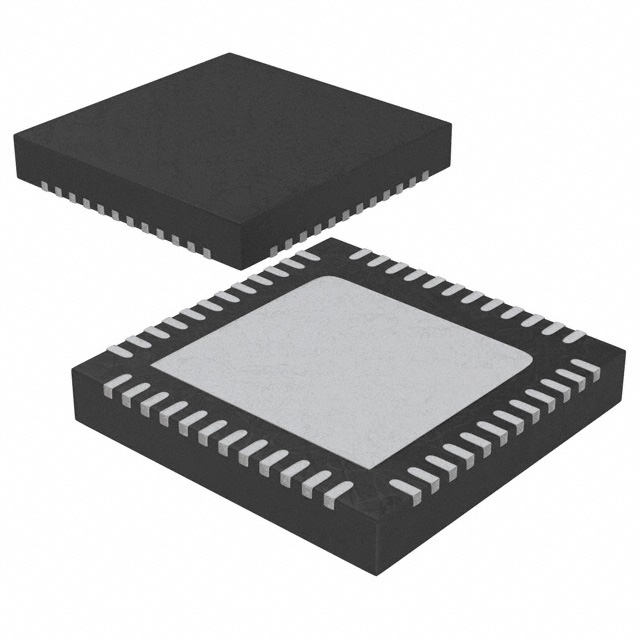

lmages are for reference only.ATWILC1001A-MU-Y
IC RF TXRX+MCU BLE 40QFN
Datasheet40-VFQFN Exposed Pad
96,327 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth, WiFi 802.11b/g/n 2.412GHz ~ 2.484GHz 40-VFQFN Exposed Pad
ATWILC1001A-MU-Y
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth, WiFi |
| Protocol | 802.11b/g/n |
| Modulation | CCK, DSSS, OFDM |
| Frequency | 2.412GHz ~ 2.484GHz |
| Data Rate (Max) | 72.2Mbps |
| Power - Output | 20.6dBm |
| Sensitivity | -98dBm |
| Memory Size | 128kB RAM, 128kB ROM |
| Serial Interfaces | I2C, SDIO, SPI, UART |
| GPIO | 4 |
| Voltage - Supply | 1.62V ~ 3.6V |
| Current - Receiving | - |
| Current - Transmitting | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (5x5) |
| Base Product Number | ATWILC1001 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ATWILC1001A-MU-T | ATWILC1000A-MU-T | ATWILC1000A-UU-T | ATWILC1000B-MU-T |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU BLE 40QFN | IC RF TXRX+MCU WIFI 40QFN | IC RF TXRX+MCU WIFI 40QFN | IC RF TXRX+MCU WIFI 40QFN |
| Series | - | - | - | - |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
