Product CatalogPart Number
AUIRGP4062D
Manufacturer
International RectifierDescription
AUIRGP4062D - AUTOMOTIVE IGBT DI
Datasheet
DatasheetPackage
TO-247-3
In Stock
88,851 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AUIRGP4062D
AUIRGP4062D
lmages are for reference only.Payment Methods
Delivery Services
IGBT 600 V 48 A 250 W Through Hole TO-247AC
Quick Inquiry
AUIRGP4062D
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 48 A |
| Current - Collector Pulsed (Icm) | 72 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 24A |
| Power - Max | 250 W |
| Switching Energy | 115µJ (on), 600µJ (off) |
| Input Type | Standard |
| Gate Charge | 50 nC |
| Td (on/off) @ 25°C | 41ns/104ns |
| Test Condition | 400V, 24A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
| Reverse Recovery Time (trr) | 89 ns |
| Base Product Number | AUIRGP4062 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | AUIRGP4062D | AUIRGP4062D-E | AUIRGP4062D1 | AUIRGP4062D1-E |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 600V 48A TO247AC | IGBT 600V 48A TO247AD | IGBT 600V 55A 217W TO247AC | IGBT 600V 55A 217W TO247AD |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
AUIRG4BC30S-S
International Rectifier
AUIRG4BC30S-S
Infineon Technologies
AUIRG4BC30S-S
Infineon Technologies
AUIRG4BC30SSTRL
Infineon Technologies
AUIRG4BC30U-S
Infineon Technologies
AUIRG4BC30USTRL
International Rectifier
AUIRG4BC30USTRL
Infineon Technologies
AUIRG4PC40S-E
Infineon Technologies
AUIRG4PC40S-E
Infineon Technologies
AUIRG4PH50S
Infineon Technologies
AUIRG4PH50S-205
Infineon Technologies

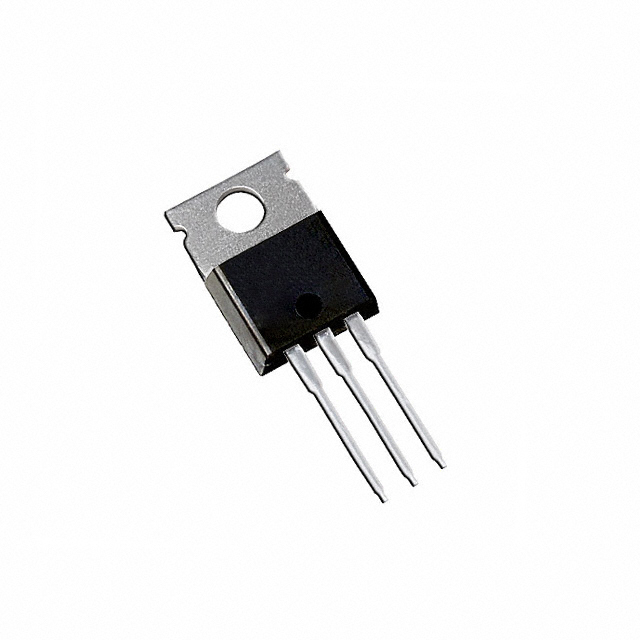

AUIRGB4062D1
Infineon Technologies
AUIRGDC0250
Infineon Technologies

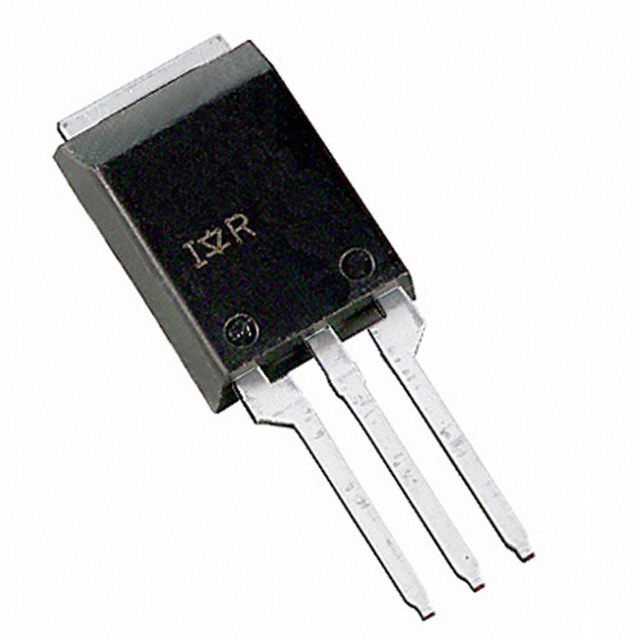

AUIRGDC0250AKMA1
Infineon Technologies
AUIRGF65A40D0
Infineon Technologies
AUIRGF65G40D0
Infineon Technologies
AUIRGF66524D0
Infineon Technologies

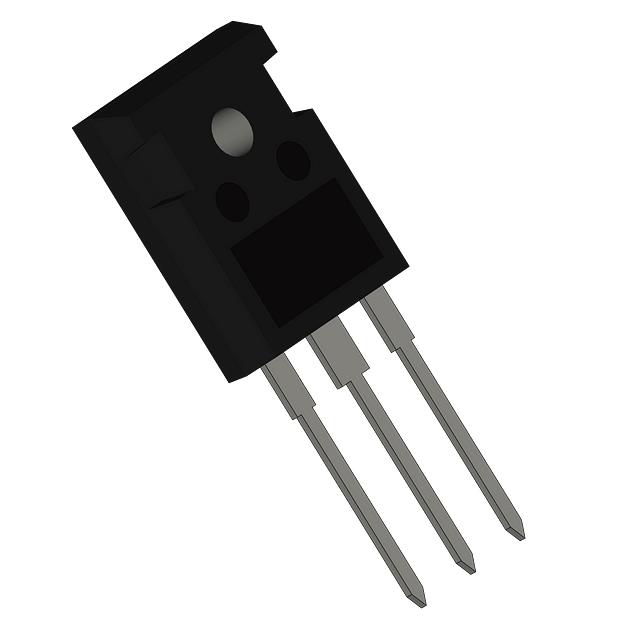

AUIRGF66524D0-IR
