AVTXAIG-13-A-37.400MHZ-E05-T3
lmages are for reference only.AVTXAIG-13-A-37.400MHZ-E05-T3
XTAL OSC VCTCXO 37.4MHZ CLPSN 3.
Datasheet4-SMD, No Lead
64,128 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
37.4 MHz VCTCXO Clipped Sine Wave Oscillator 3V 4-SMD, No Lead
AVTXAIG-13-A-37.400MHZ-E05-T3
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AVTXAIG-13 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 37.4 MHz |
| Function | - |
| Output | Clipped Sine Wave |
| Voltage - Supply | 3V |
| Frequency Stability | ±500ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -30°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 2.5mA |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|

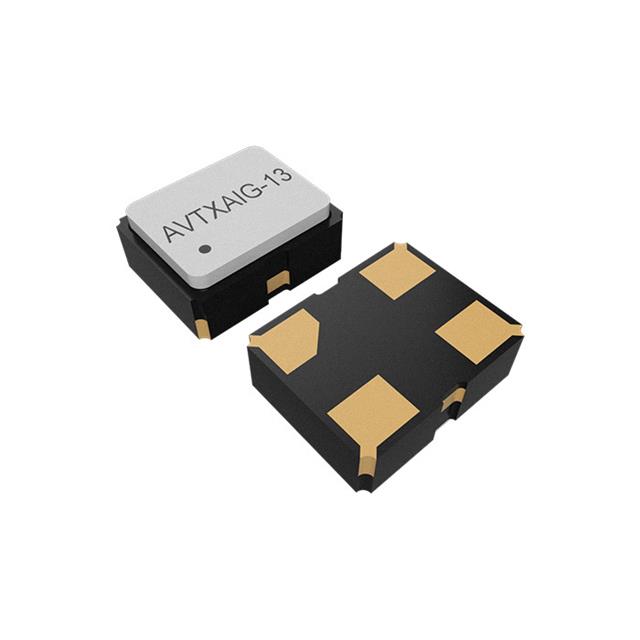

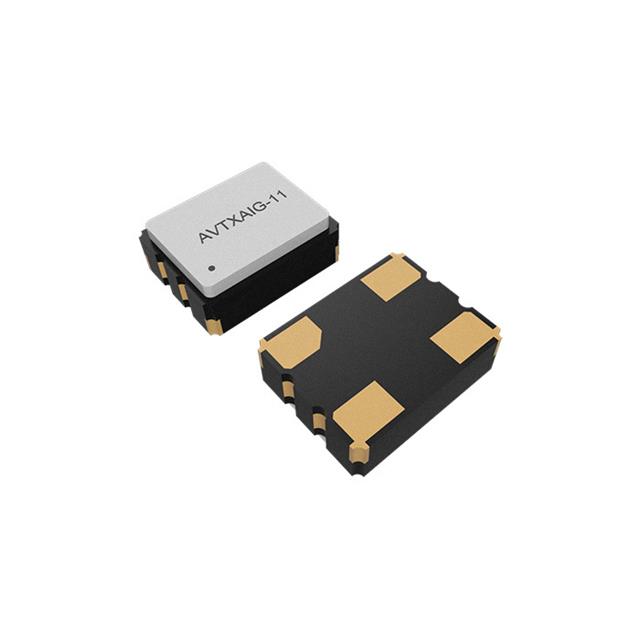

| Part Number | AVTXAIG-13-A-38.400MHZ-E05 | AVTXAIG-13-A-38.400MHZ-E05-T3 | AVTXAIG-11-A-26.000MHZ-E05-T3 | AVTXAIG-11-A-37.400MHZ-E05-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 38.4MHZ CLPSN 3. | XTAL OSC VCTCXO 38.4MHZ CLPSN 3. | XTAL OSC VCTCXO 26MHZ CLPSN 3.0V | XTAL OSC VCTCXO 37.4MHZ CLPSN 3. |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
