AY1111C-TR

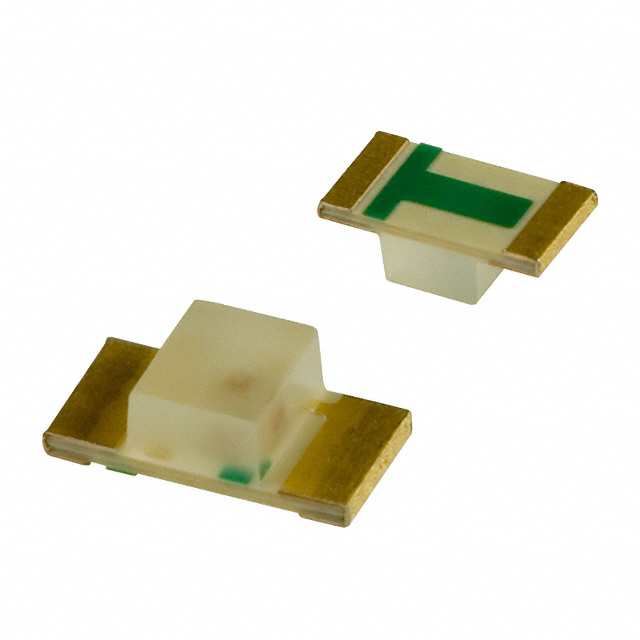

lmages are for reference only.AY1111C-TR
LED YELLOW DIFFUSED 1608 SMD
Datasheet0603 (1608 Metric)
40,300 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow 590nm LED Indication - Discrete 2.2V 0603 (1608 Metric)
AY1111C-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Stanley Electric Co |
| Series | 1111C |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 3.4mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | 138°, 137° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 590nm |
| Wavelength - Peak | 580nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 1608 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.80mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AY1101F-TR | AY1101W-633-TR | AY1101W-TR | AY1102W-TR |
| Manufacturer | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | LED YELLOW CLEAR SMD R/A | LED YELLOW SMD | LED YELLOW CLEAR 3216 SMD | LED YELLOW CLEAR 3216 SMD |
| Series | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
