Product CatalogPart Number
AZ2800-2CE-277A5E
Manufacturer
American ZettlerDescription
RELAY GEN PURPOSE DPDT 40A 277V
Datasheet
DatasheetPackage
-
In Stock
53,486 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AZ2800-2CE-277A5E
AZ2800-2CE-277A5E

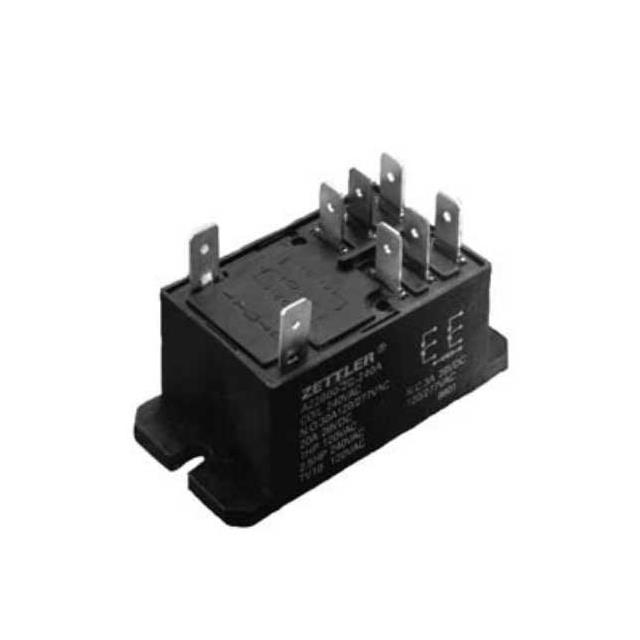

lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 277VAC Coil Chassis Mount
Quick Inquiry
AZ2800-2CE-277A5E
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | American Zettler |
| Series | AZ2800 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 277VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 600VAC, 30VDC - Max |
| Load - Max Switching | 11080VA, 1200W |
| Coil Current | 14.4 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 222 VAC |
| Must Release Voltage | 55.4 VAC |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -40°C ~ 65°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 5.96 kOhms |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AZ2800-2CE-277A5 | AZ2800-2CE-277A | AZ2800-2CE-277A6 | AZ2800-2CE-277A6E |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 40A 277V | RELAY GEN PURPOSE DPDT 40A 277V | RELAY GEN PURPOSE DPDT 40A 277V | RELAY GEN PURPOSE DPDT 40A 277V |
| Series | American Zettler | American Zettler | American Zettler | American Zettler |
| Packaging | Box | Box | Box | Box |
