Product CatalogPart Number
B0520WS
Manufacturer
EVVODescription
RECTIFIER DIODE SCHOTTKY 20V 0.5
Datasheet
DatasheetPackage
SC-76, SOD-323
In Stock
15,382 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
B0520WS
B0520WS
lmages are for reference only.Payment Methods
Delivery Services
Diode 20 V 500mA Surface Mount SOD-323
Quick Inquiry
B0520WS
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | EVVO |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 390 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 250 µA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | B0520WS-7 | B0520WS-7-F | B0520WS-7-F-2477 | B0520WS-7-G |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 20V 500MA SOD323 | DIODE SCHOTTKY 20V 500MA SOD323 | DIODE | DIODE SCHOTTKY 20V 500MA SOD323 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
B0520LW
Taiwan Semiconductor Corporation

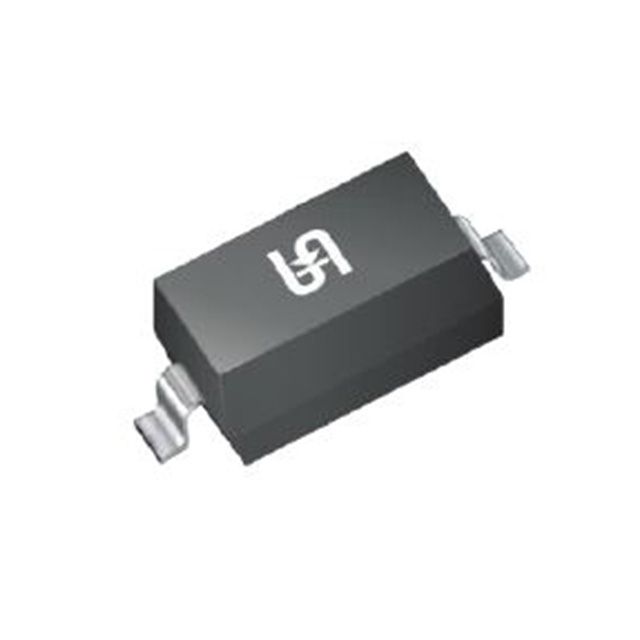

B0520LW RHG
Taiwan Semiconductor Corporation
B0520LW-7
Diodes Incorporated
B0520LW-7-F
Diodes Incorporated
B0520LW-7-F-2477
Diodes Incorporated
B0520LWF
Taiwan Semiconductor Corporation
B0520LWF RHG
Taiwan Semiconductor Corporation
B0520LWQ-7-F
Diodes Incorporated
B0520WS-7
Diodes Incorporated
B0520WS-7-F
Diodes Incorporated
B0520WS-7-F-2477
Diodes Incorporated
B0520WS-7-G
Diodes Incorporated

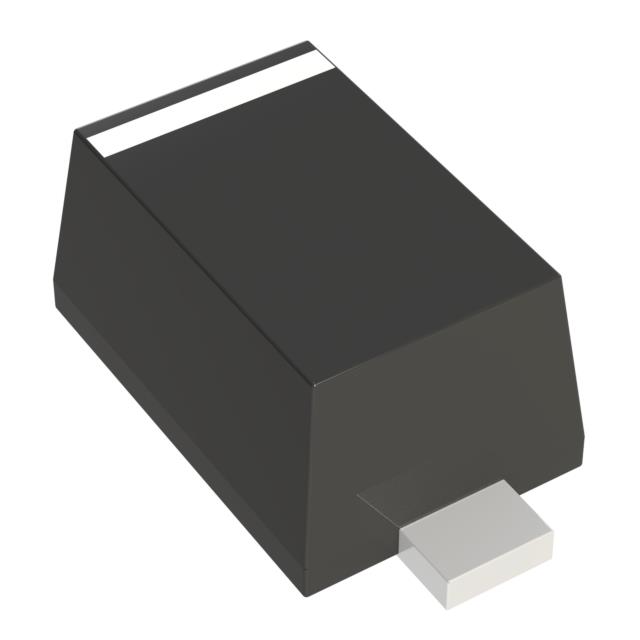

B0520WTL-TP
