B089NC4S
lmages are for reference only.B089NC4S
RF FILTER BAND PASS 9.1GHZ 2SMD
Datasheet2-SMD, No Lead
79,686 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.1GHz Frequency Band Pass RF Filter (Radio Frequency) 2GHz Bandwidth 2.75dB 2-SMD, No Lead
B089NC4S
| Category | Filters - RF Filters - |
| Manufacturer | Knowles Dielectric Labs |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Frequency | 9.1GHz |
| Bandwidth | 2GHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 2.75dB |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.400" L x 0.150" W (10.16mm x 3.81mm) |
| Height (Max) | 0.103" (2.62mm) |
| Base Product Number | B089NC |
| Product Attribute |  |
 |
 |
 |

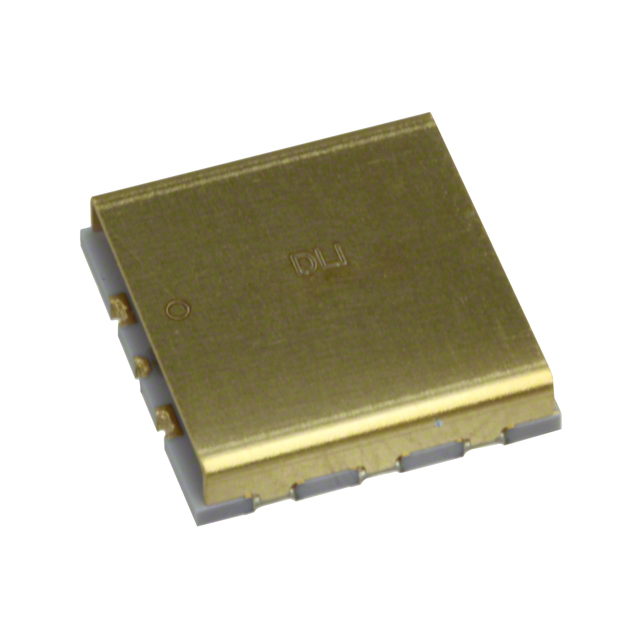

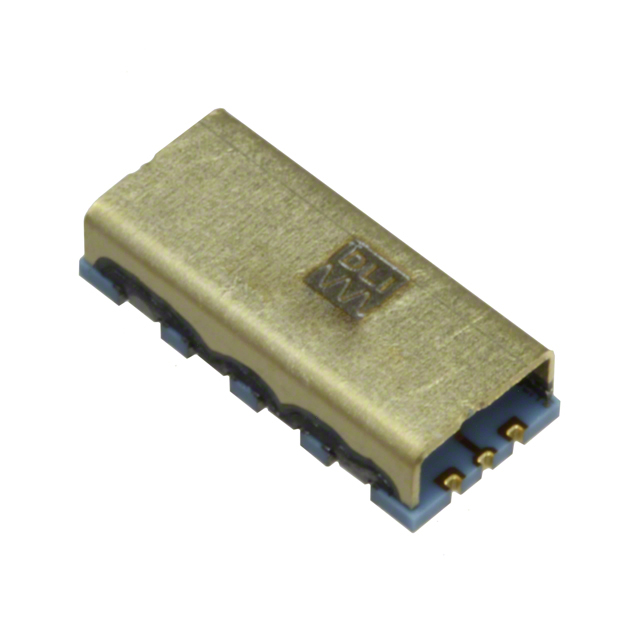

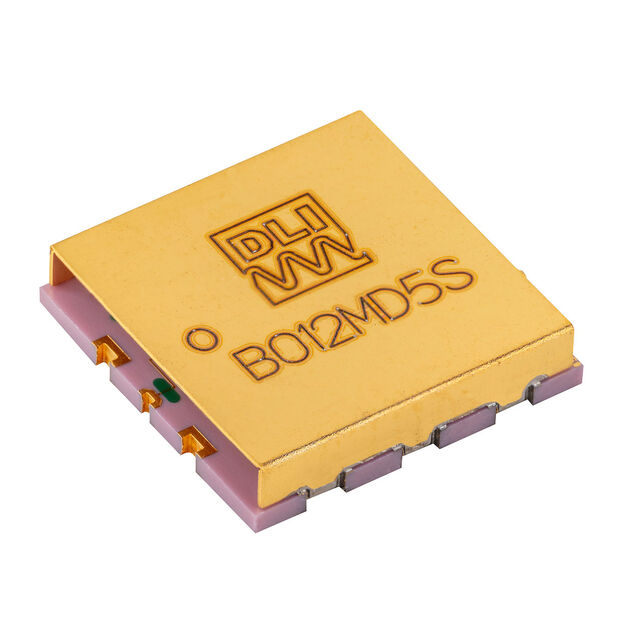

| Part Number | B089NC4S-T | B012MD5S | B016MD6S | B021MC8S |
| Manufacturer | Knowles Dielectric Labs | Knowles Dielectric Labs | Knowles Dielectric Labs | Knowles Dielectric Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RF FILTER BAND PASS 9.1GHZ 3SMD | RF FILTER BANDPASS 1.227GHZ 6SMD | RF FILTER BAND PASS 1.575GHZ | AFL10510 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk | Bulk | Bulk |
