B110S
lmages are for reference only.B110S
GLASS PASSIVATED BRIDGE RECTIFIE
DatasheetTO-269AA, 4-BESOP
18,470 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 1 kV Surface Mount MBS
B110S
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | HY Electronic (Cayman) Limited |
| Series | B |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-269AA, 4-BESOP |
| Supplier Device Package | MBS |
| Base Product Number | B110 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

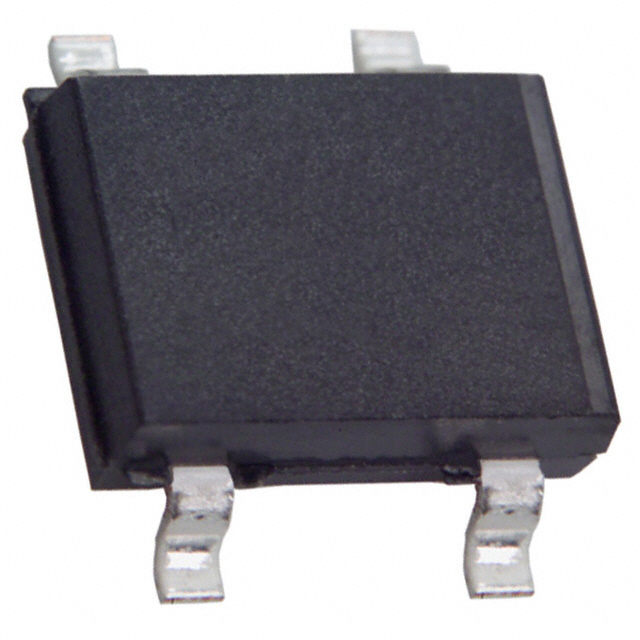

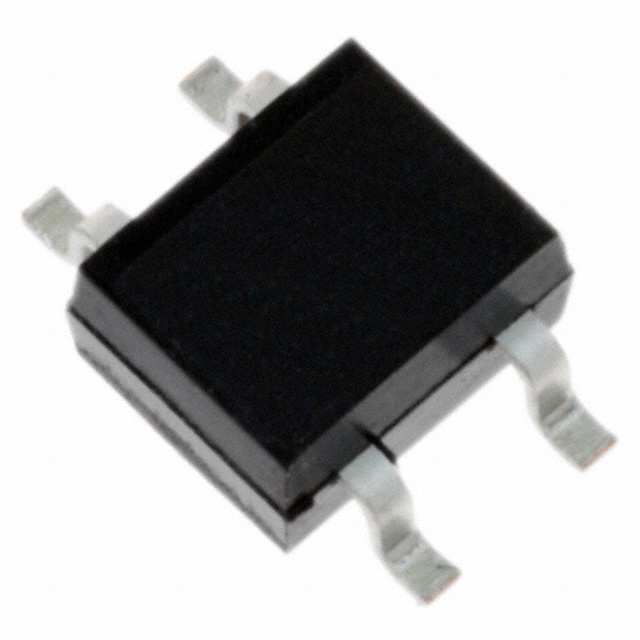

| Part Number | B1010S_R2_00001 | B106S_R2_00001 | B108S_R2_00001 | B10S-G |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MINI SURFACE MOUNT GLASS PASSIVA | MINI SURFACE MOUNT GLASS PASSIVA | MINI SURFACE MOUNT GLASS PASSIVA | BRIDGE RECT 1PHASE 1KV 800MA MBS |
| Series | B1005S | B1005S | B1005S | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
