B11G3742N81DYZ
lmages are for reference only.B11G3742N81DYZ
RF MOSFET LDMOS 550 MV 36QFN
Datasheet36-QFN Exposed Pad
55,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 550 mV 195 mA 3.7GHz ~ 4.2GHz 32dB 48.4dBm 36-PQFN (12x7)
B11G3742N81DYZ
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Ampleon USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | LDMOS |
| Configuration | Dual |
| Frequency | 3.7GHz ~ 4.2GHz |
| Gain | 32dB |
| Voltage - Test | 550 mV |
| Current Rating (Amps) | 1.4µA |
| Noise Figure | - |
| Current - Test | 195 mA |
| Power - Output | 48.4dBm |
| Voltage - Rated | 28 V |
| Mounting Type | Surface Mount |
| Package / Case | 36-QFN Exposed Pad |
| Supplier Device Package | 36-PQFN (12x7) |
| Base Product Number | B11G3742 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

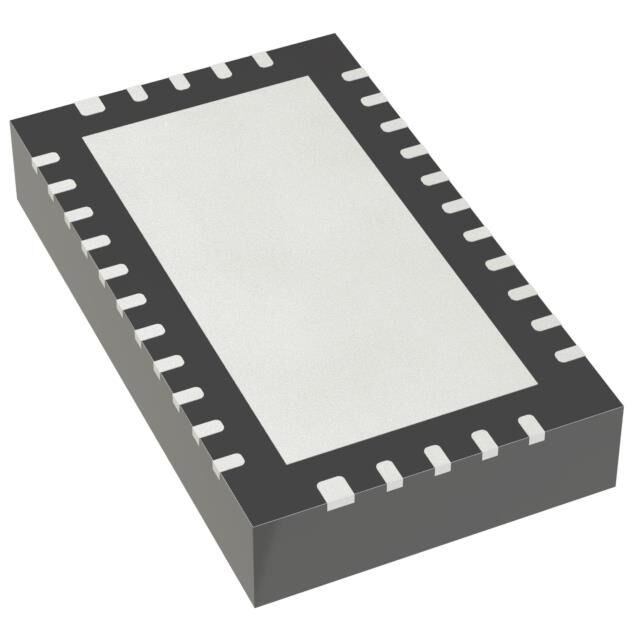

| Part Number | B11G1822N60DX | B11G1822N60DYZ | B11G2327N70DYZ | B11G2327N71DX |
| Manufacturer | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MOSFET LDMOS 28V 36QFN | RF MOSFET LDMOS 36QFN | RF MOSFET LDMOS 36QFN | RF MOSFET LDMOS 28V 36QFN |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
