B25620B1107K101

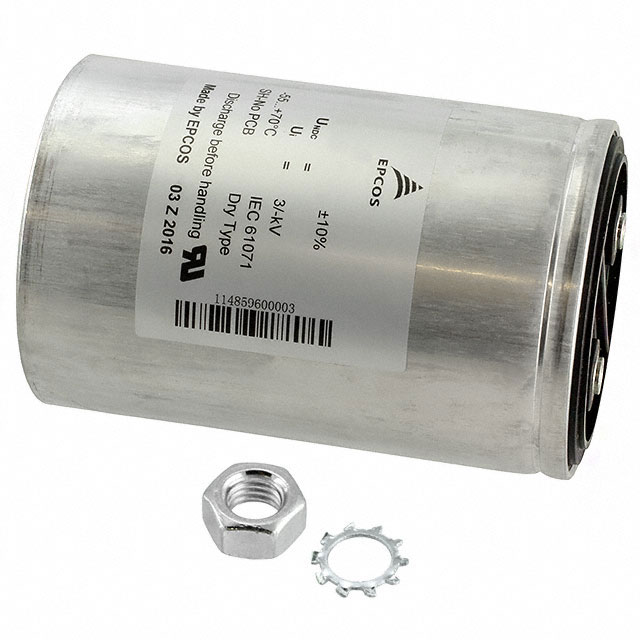

lmages are for reference only.B25620B1107K101
CAP FILM 100UF 10% 1.1KVDC RAD
DatasheetRadial, Can
60,168 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, Can
B25620B1107K101
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | MKP DC Link |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 100 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 70°C |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can |
| Size / Dimension | 2.953" Dia (75.00mm) |
| Height - Seated (Max) | 2.795" (71.00mm) |
| Termination | Threaded, Female |
| Lead Spacing | 1.260" (32.00mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B25620B1108K203 | B25620B1108K323 | B25620B1117K981 | B25620B1118K103 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1000UF 10% 1.2KVDC RAD | CAP FILM 1000UF 10% 1.32KVDC RAD | CAP FILM 110UF 10% 1.98KVDC RAD | CAP FILM 1100UF 10% 1.1KVDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
