B32621A0222J289
lmages are for reference only.B32621A0222J289
CAP FILM 2200PF 5% 1KVDC RADIAL
DatasheetRadial
59,553 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2200 pF Film Capacitor 500V 1000V (1kV) Polypropylene (PP), Metallized - Stacked Radial
B32621A0222J289
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3262* - MKP High Pulse (stacked) |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2200 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized - Stacked |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

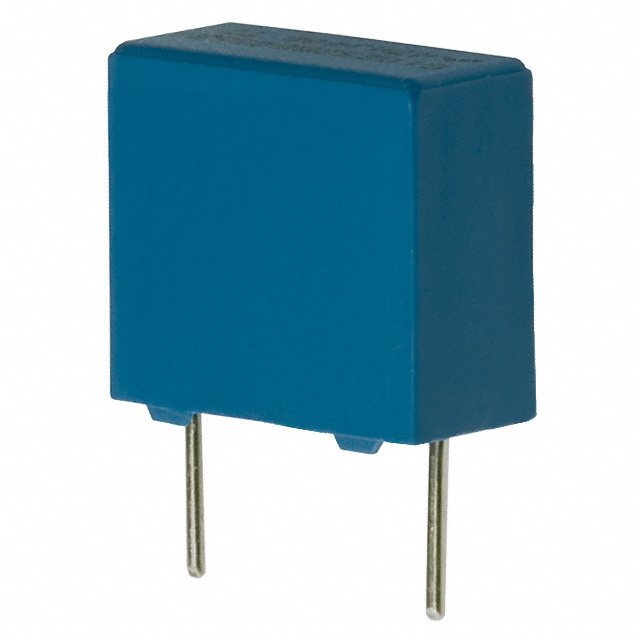

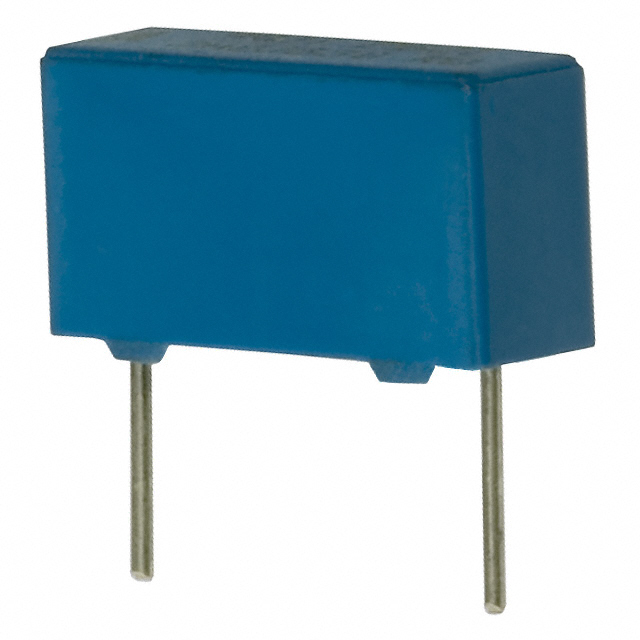

| Part Number | B32621A0222J000 | B32621A0222K000 | B32621A0222K289 | B32621A0222M000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 2200PF 5% 1KVDC RADIAL | CAP FILM 2200PF 10% 1KVDC RADIAL | CAP FILM 2200PF 10% 1KVDC RADIAL | CAP FILM 2200PF 20% 1KVDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Tape & Box (TB) | Bulk |
