B32656S7125K563
lmages are for reference only.B32656S7125K563
CAP FILM 1.2UF 10% 1.25KVDC SCRW
DatasheetRectangular Box
31,159 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2 µF Film Capacitor 500V 1250V (1.25kV) Polypropylene (PP), Metallized Rectangular Box
B32656S7125K563
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3265* - MKP General Purpose |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1.2 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 2.244" (57.00mm) |
| Applications | Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| ESR (Equivalent Series Resistance) | 4.5 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|

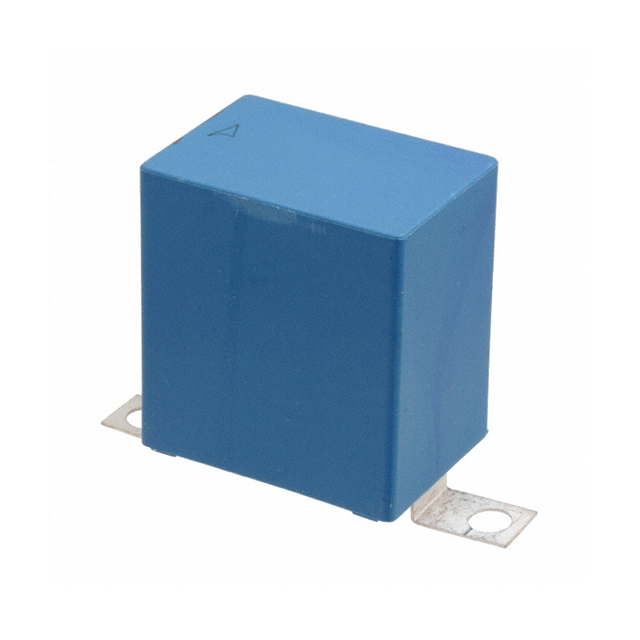

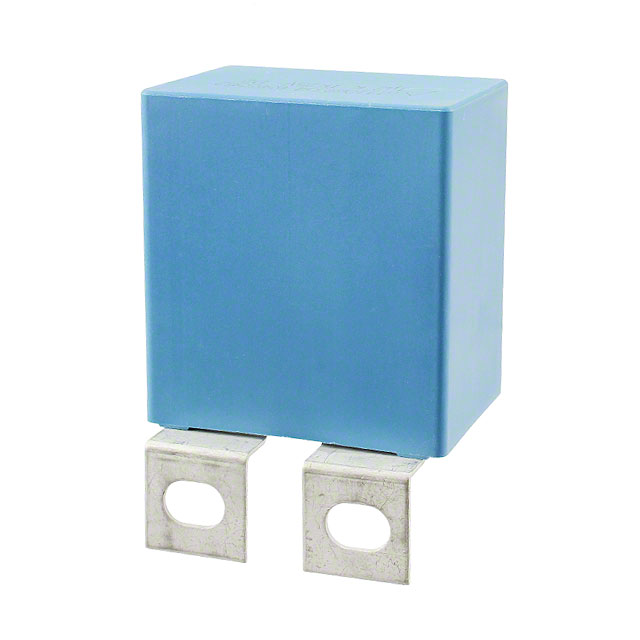

| Part Number | B32656S7125K561 | B32656S7125K562 | B32656S7125K562 | B32656S7125K566 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1.2UF 10% 1.25KVDC SCRW | CAP FILM 1.2UF 10% 1.25KVDC SCRW | CAP FILM 1.2UF 10% 1.25KVDC SCRW | CAP FILM 1.2UF 10% 1.25KVDC SCRW |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
