B32656S8105K564
lmages are for reference only.B32656S8105K564
FILM CAP 1.0000UF 10% 850V MKP B
DatasheetRectangular Box
55,987 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µF Film Capacitor 450V 850V Polypropylene (PP), Metallized Rectangular Box
B32656S8105K564
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B32656S |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 850V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 0.709" W (42.00mm x 18.00mm) |
| Height - Seated (Max) | 1.280" (32.50mm) |
| Termination | Screw Terminals |
| Lead Spacing | - |
| Applications | High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | Low ESL |
| ESR (Equivalent Series Resistance) | 6 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32656S8105K562 | B32656S8105K566 | B32656S8125K408 | B32656S8125K561 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

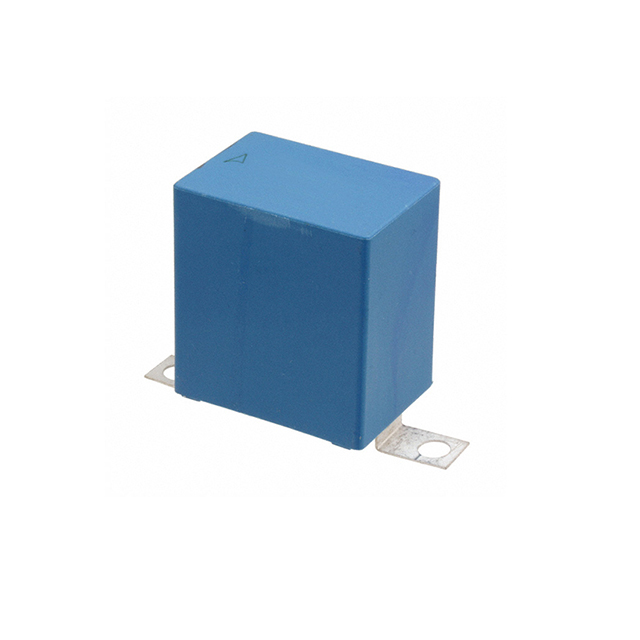

| Description | FILM CAP 1.0000UF 10% 850V MKP B | CAP FILM 1UF 10% 850VDC SCREW | FILM CAP 1.2000UF 10% 850V MKP B | CAP FILM 1.2UF 10% 850VDC SCREW |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
