B32686A0104K000

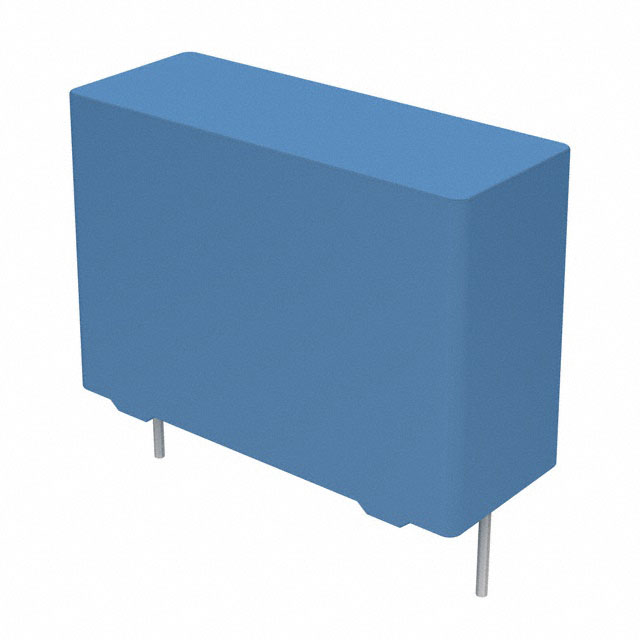

lmages are for reference only.B32686A0104K000
CAP FILM 0.1UF 10% 1KVDC RADIAL
DatasheetRadial
42,011 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.1 µF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial
B32686A0104K000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3268* - MFP Very High Pulse |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.654" L x 0.472" W (42.00mm x 12.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32686A0154K000 | B32682A0103K000 | B32682A0332K000 | B32682A0682K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.15UF 10% 1KVDC RADIAL | CAP FILM 10000PF 10% 1KVDC RAD | CAP FILM 3300PF 10% 1KVDC RADIAL | CAP FILM 6800PF 10% 1KVDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
