B32756G2226J000
lmages are for reference only.B32756G2226J000
CAP FILM 22UF 5% 500VDC RADIAL
DatasheetRadial - 4 Leads
28,486 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µF Film Capacitor 250V 500V Polypropylene (PP), Metallized Radial - 4 Leads
B32756G2226J000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3275* - MKP AC-Filter |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 500V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | 3.6 mOhms |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | B32756G2226J000 | B32756G2206J000 | B32756G2206K000 | B32756G2226K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

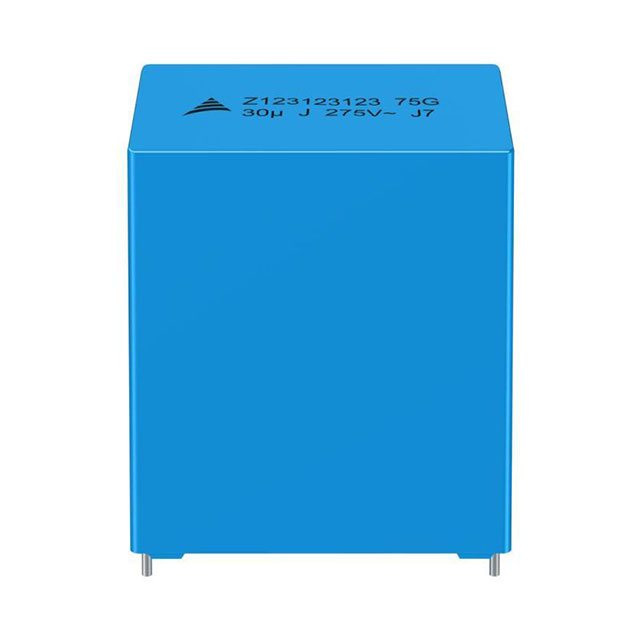

| Description | CAP FILM 22UF 5% 500VDC RADIAL | CAP FILM 20UF 5% 500VDC RADIAL | CAP FILM 20UF 10% 500VDC RADIAL | CAP FILM 22UF 10% 500VDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
