B32776E0166K000
lmages are for reference only.B32776E0166K000
CAP FILM 16UF 10% 1.1KVDC RADIAL
DatasheetRadial
49,093 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
16 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial
B32776E0166K000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3277* - MKP DC-Link |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 16 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.654" L x 1.102" W (42.00mm x 28.00mm) |
| Height - Seated (Max) | 1.673" (42.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | Long Life |
| ESR (Equivalent Series Resistance) | 7.8 mOhms |
| Base Product Number | B32776E |
| Product Attribute |  |
 |
 |
 |

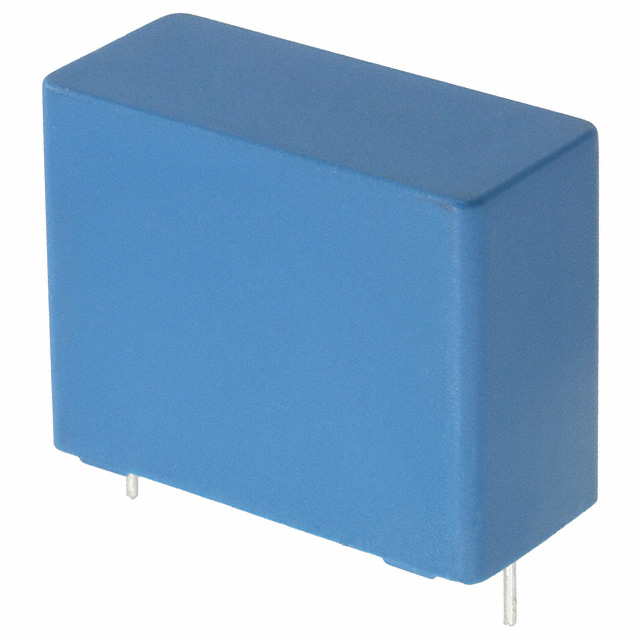

| Part Number | B32776E0126K000 | B32776E0146K000 | B32774D0205J000 | B32774D0205K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 12UF 10% 1.1KVDC RADIAL | CAP FILM 14UF 10% 1.1KVDC RADIAL | CAP FILM 2UF 5% 1.1KVDC RADIAL | CAP FILM 2UF 10% 1.1KVDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
