B38G3RGB-20D0010H2U1930
lmages are for reference only.B38G3RGB-20D0010H2U1930
LED RGB DIFFUSED 0606 SMD
Datasheet0606 (1616 Metric)
25,015 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 0606 (1616 Metric)
B38G3RGB-20D0010H2U1930
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Harvatek Corporation |
| Series | B38G3RGB-20 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 112.5mcd Red, 285mcd Green, 71.5mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120°, 130°, 130°, 140°, 145°, 160° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Features | - |
| Package / Case | 0606 (1616 Metric) |
| Supplier Device Package | 0606 |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.50mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B38G3RGB-10D0003H2U1930 | B30V3FCH-E7C0001H4U1930 | B3173BGR-20C0001Q3U1930 | B31G3BGR-20C0001Q3U1930 |
| Manufacturer | Harvatek Corporation | Harvatek Corporation | Harvatek Corporation | Harvatek Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

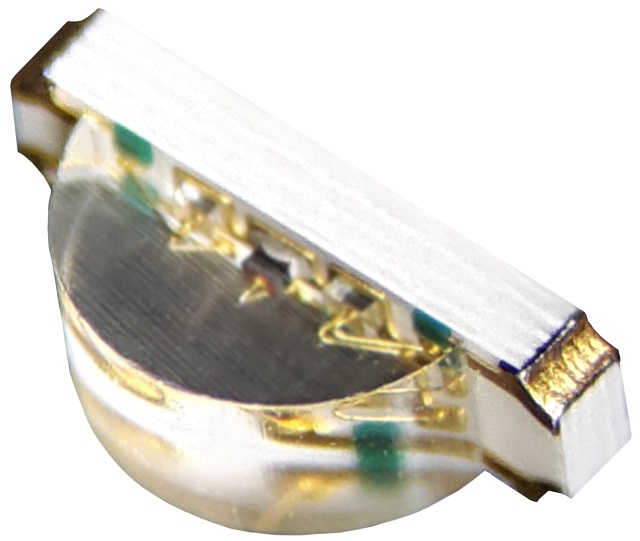

| Description | LED RGB 0606 SMD | LED RGB CLEAR 0404 SMD | LED RGB 4SMD R/A | LED RGB CLEAR 4SMD R/A |
| Series | Harvatek Corporation | Harvatek Corporation | Harvatek Corporation | Harvatek Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
