B39192B5609U410
lmages are for reference only.B39192B5609U410
RFFE FILTER BANDPASS SAW
Datasheet6-SMD, No Lead
51,320 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.8825GHz Frequency Base Stations RF SAW Filter (Surface Acoustic Wave) 2.4dB 65MHz Bandwidth 6-SMD, No Lead
B39192B5609U410
| Category | Filters - SAW Filters - |
| Manufacturer | Qualcomm (RF front-end (RFFE) filters) |
| Series | B5609 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Bandwidth | 65MHz |
| Insertion Loss | 2.4dB |
| Ratings | - |
| Applications | Base Stations |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Height (Max) | 0.048" (1.23mm) |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Frequency - Center | 1.8825GHz |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

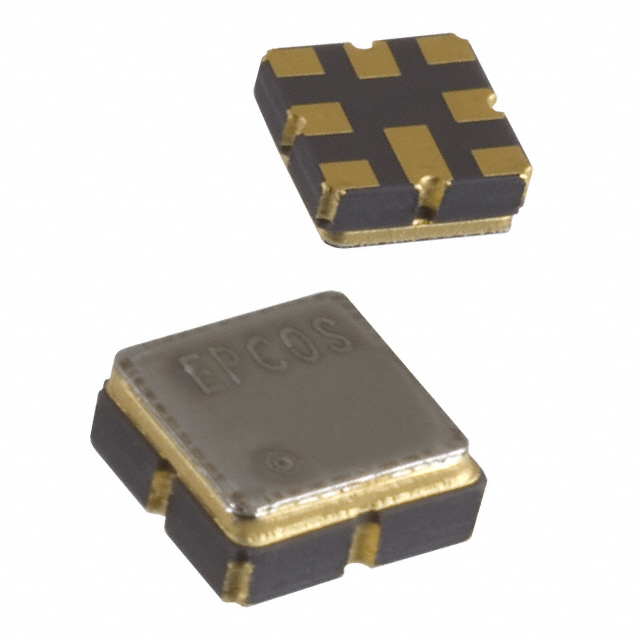

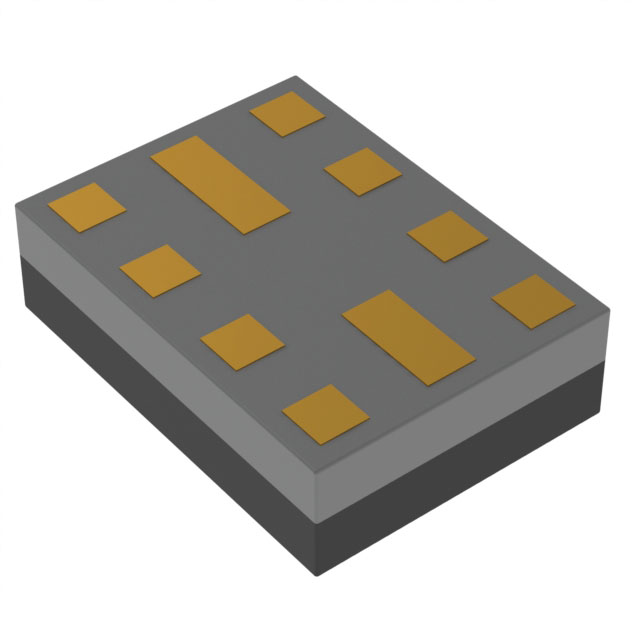

| Part Number | B39191B3697Z510W1 | B39191B5087H810 | B39192B3511U810 | B39192B4176U510 |
| Manufacturer | Qualcomm (RF front-end (RFFE) filters) | Qualcomm (RF front-end (RFFE) filters) | Qualcomm (RF front-end (RFFE) filters) | Qualcomm (RF front-end (RFFE) filters) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FILTER SAW 190MHZ 12SMD | FILTER SAW 192MHZ 10SMD | FILTER SAW 1.865/1.895GHZ 8SMD | FILTER SAW 1.95GHZ 6SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
