B3W-9010-HG1N
lmages are for reference only.B3W-9010-HG1N
SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet-
88,391 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Through Hole
B3W-9010-HG1N
| Category | Switches - Tactile Switches - |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | B3W-9 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Square Button |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 10.20mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 12.00mm x 12.00mm |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 3.7 VDC |
| Operating Force | 160gf |
| Ingress Protection | - |
| Features | Sealed - Fully |
| Operating Temperature | -25°C ~ 70°C |
| Actuator Material | - |
| Switch Travel | 0.25mm |
| Mechanical Life | 1,000,000 Cycles |
| Base Product Number | B3W |
| Product Attribute |  |
 |
 |
 |

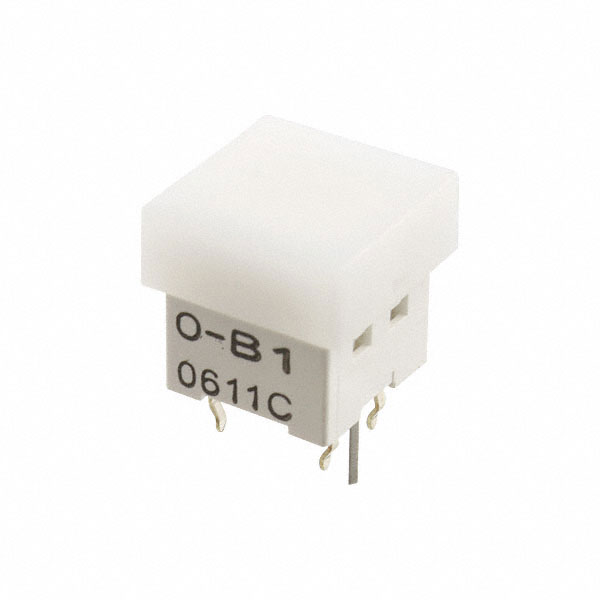

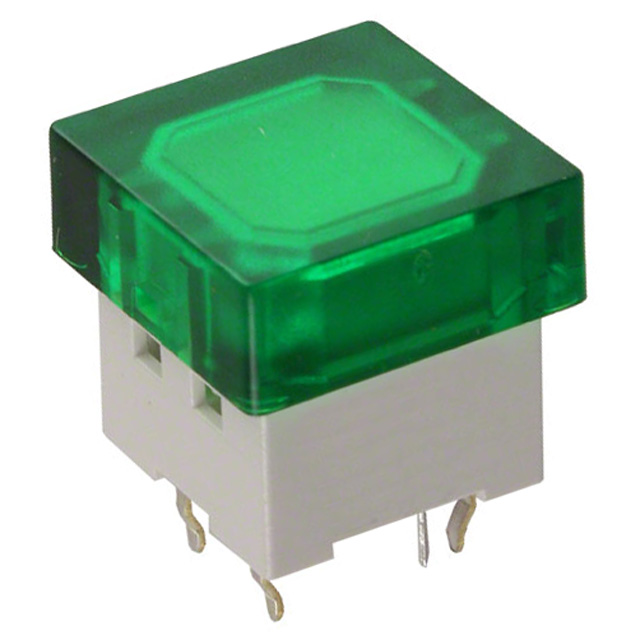

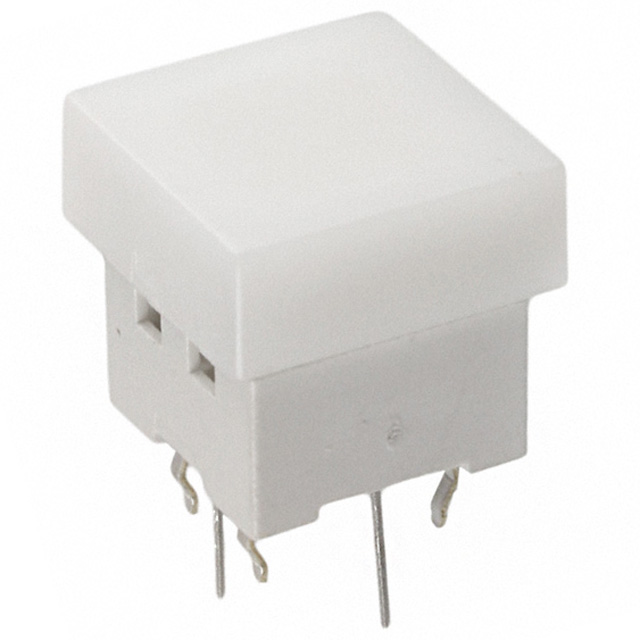

| Part Number | B3W-9010-HG1G | B3W-9010-HG2G | B3W-9010-HG2N | B3W-9010-B1N |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V | SWITCH TACTILE SPST-NO 0.05A 24V |
| Series | B3W-9 | B3W-9 | B3W-9 | B3W-9 |
| Packaging | Bulk | Bulk | Bulk | Tube |
