B41580A5220M000

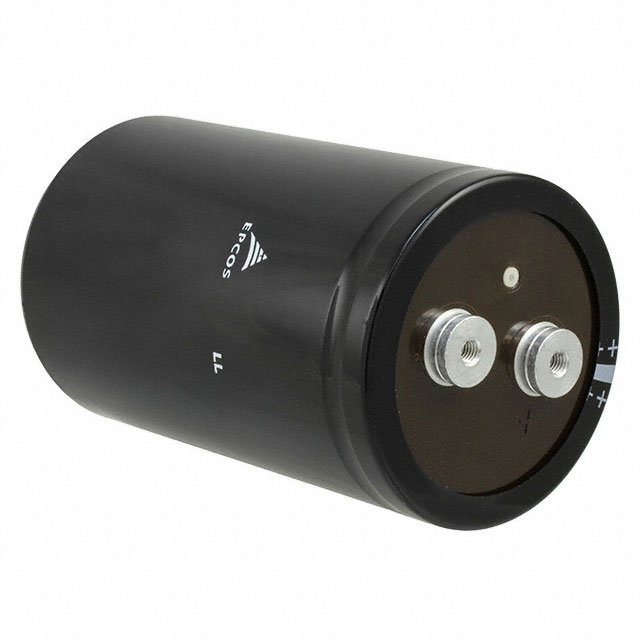

lmages are for reference only.B41580A5220M000
CAP ALUM 220000UF 20% 25V SCREW
DatasheetRadial, Can - Screw Terminals
78,728 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5.3mOhm @ 100Hz 3000 Hrs @ 105°C
B41580A5220M000
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B41580 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 220000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 5.3mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | 5.6 mOhms |
| Product Attribute | |
 |
|
 |
| Part Number | B41580A5229M000 | B41580A5100M000 | B41580A5150M000 | B41580A5159M000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 22000UF 20% 25V SCREW | CAP ALUM 100000UF 20% 25V SCREW | CAP ALUM 150000UF 20% 25V SCREW | CAP ALUM 15000UF 20% 25V SCREW |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
