B43642B9687M000

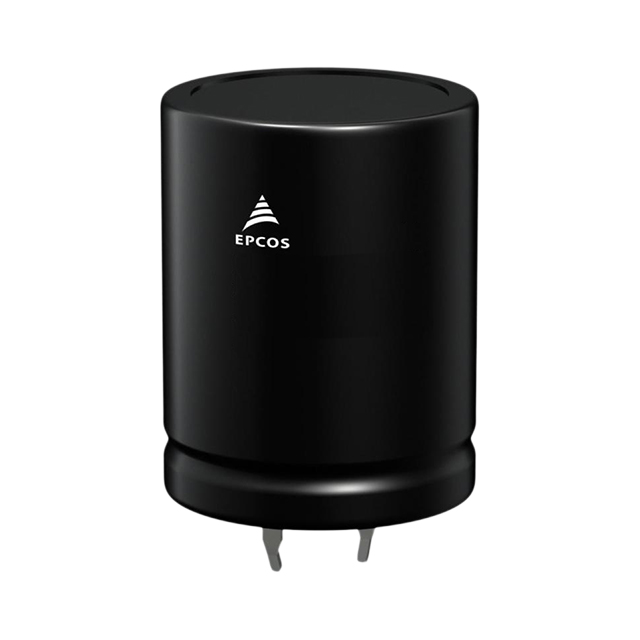

lmages are for reference only.B43642B9687M000
CAP ALUM 680UF 20% 400V SNAP TH
DatasheetRadial, Can - Snap-In
33,096 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 150mOhm @ 100Hz 3000 Hrs @ 105°C
B43642B9687M000
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B43642 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.62 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | 220 mOhms |
| Product Attribute |  |
 |
|
 |
| Part Number | B43642B9687M007 | B43640A2108M007 | B43640A2108M007 | B43640A2158M000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 680UF 20% 400V SNAP TH | CAP ALUM 1000UF 20% 200V SNAP TH | CAP ALUM 1000UF 20% 200V SNAP TH | CAP ALUM 1500UF 20% 200V SNAP TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
