B78108S1223K000
lmages are for reference only.B78108S1223K000
FIXED IND 22UH 560MA 740 MOHM TH
DatasheetAxial
72,411 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Unshielded Drum Core, Wirewound Inductor 560 mA 740mOhm Max Axial

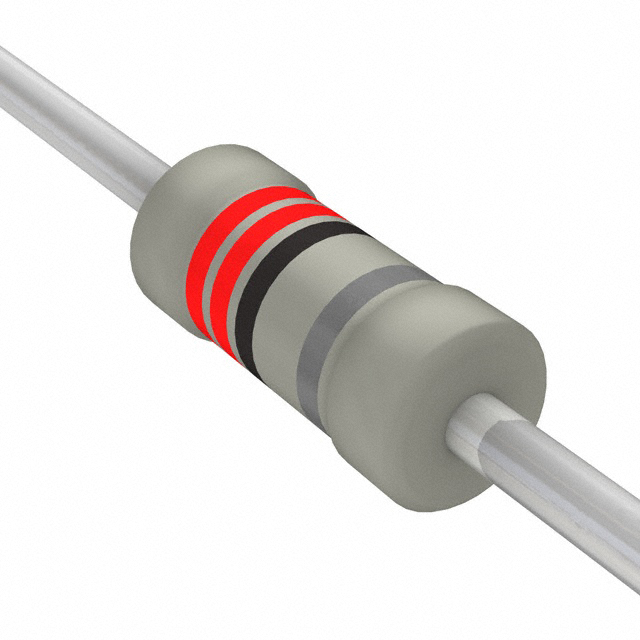

B78108S1223K000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | BC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 560 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 740mOhm Max |
| Q @ Freq | 55 @ 2.52MHz |
| Frequency - Self Resonant | 13MHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B78108S1223K009 | B78108S1222J000 | B78108S1222K000 | B78108S1222K009 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22UH 560MA 740 MOHM TH | FIXED IND 2.2UH 1A 250 MOHM TH | FIXED IND 2.2UH 1A 250 MOHM TH | FIXED IND 2.2UH 1A 250 MOHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Tape & Box (TB) |
