B78108S1225J000
lmages are for reference only.B78108S1225J000
FIXED IND 2.2MH 80MA 34.7 OHM TH
DatasheetAxial
34,642 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 mH Unshielded Drum Core, Wirewound Inductor 80 mA 34.7Ohm Max Axial
B78108S1225J000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | BC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 80 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 34.7Ohm Max |
| Q @ Freq | 40 @ 252kHz |
| Frequency - Self Resonant | 1.1MHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 252 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

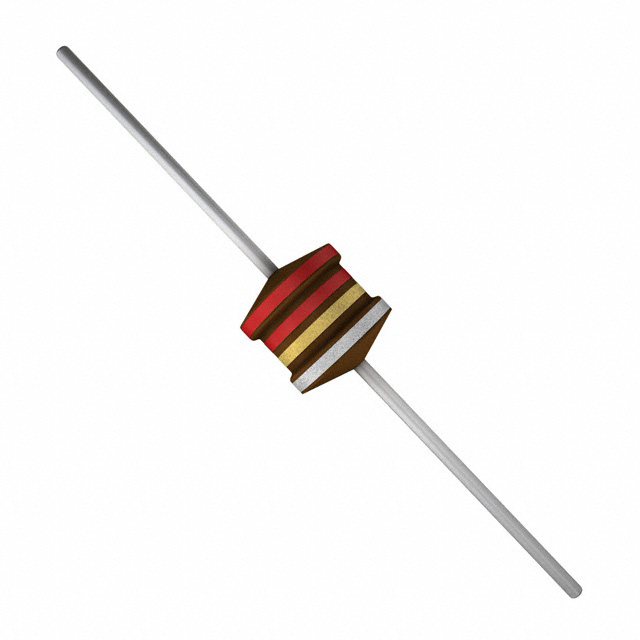

| Part Number | B78108S1225J009 | B78108S1222J000 | B78108S1222K000 | B78108S1222K009 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2MH 80MA 34.7 OHM TH | FIXED IND 2.2UH 1A 250 MOHM TH | FIXED IND 2.2UH 1A 250 MOHM TH | FIXED IND 2.2UH 1A 250 MOHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Tape & Box (TB) |
