B78148E1101M000

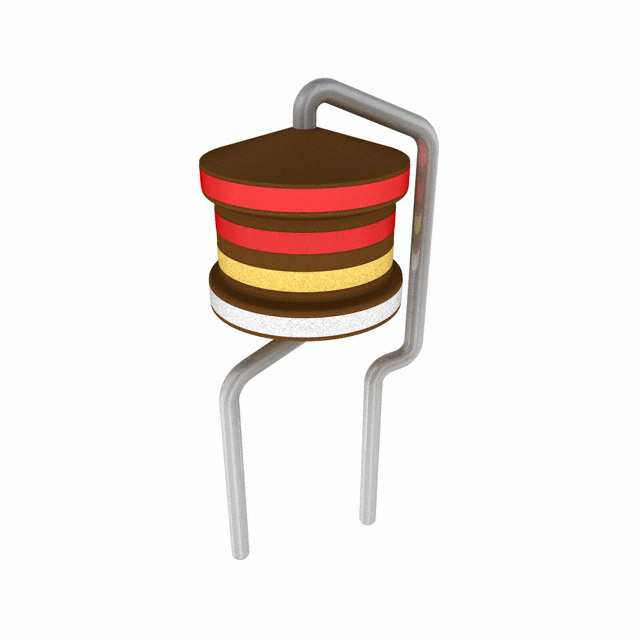

lmages are for reference only.B78148E1101M000
FIXED IND 100NH 7.3A 15 MOHM TH
DatasheetRadial
28,400 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 nH Unshielded Drum Core, Wirewound Inductor 7.3 A 15mOhm Max Radial
B78148E1101M000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | BC+ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.3 A |
| Current - Saturation (Isat) | 17A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | 50 @ 7.96MHz |
| Frequency - Self Resonant | 700MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B78148E1101M009 | B78148E1102K000 | B78148E1102K009 | B78148E1103K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 7.3A 15 MOHM TH | FIXED IND 1UH 4.15A 38 MOHM TH | FIXED IND 1UH 4.15A 38 MOHM TH | FIXED IND 10UH 2.25A 136 MOHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) |
