B82141A1104K009

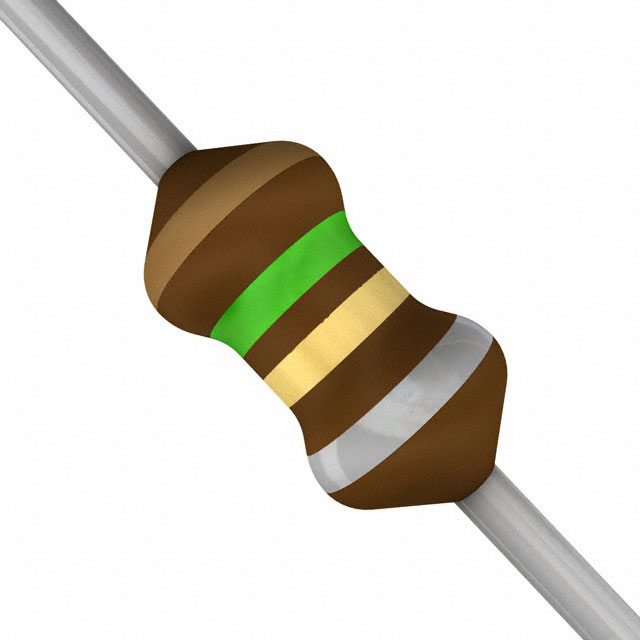

lmages are for reference only.B82141A1104K009
FIXED IND 100UH 170MA 3.5 OHM TH
DatasheetAxial
40,731 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µH Unshielded Drum Core, Wirewound Inductor 170 mA 3.5Ohm Max Axial
B82141A1104K009
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | SBC |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 170 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.5Ohm Max |
| Q @ Freq | 60 @ 796kHz |
| Frequency - Self Resonant | 5.3MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B82141A1104K000 | B82141A1102K000 | B82141A1102K009 | B82141A1103K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 170MA 3.5 OHM TH | FIXED IND 1UH 725MA 190 MOHM TH | FIXED IND 1UH 725MA 190 MOHM TH | FIXED IND 10UH 410MA 600 MOHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) |
